ENGINE
4-154 Rev. 000 TX525 Service Manual

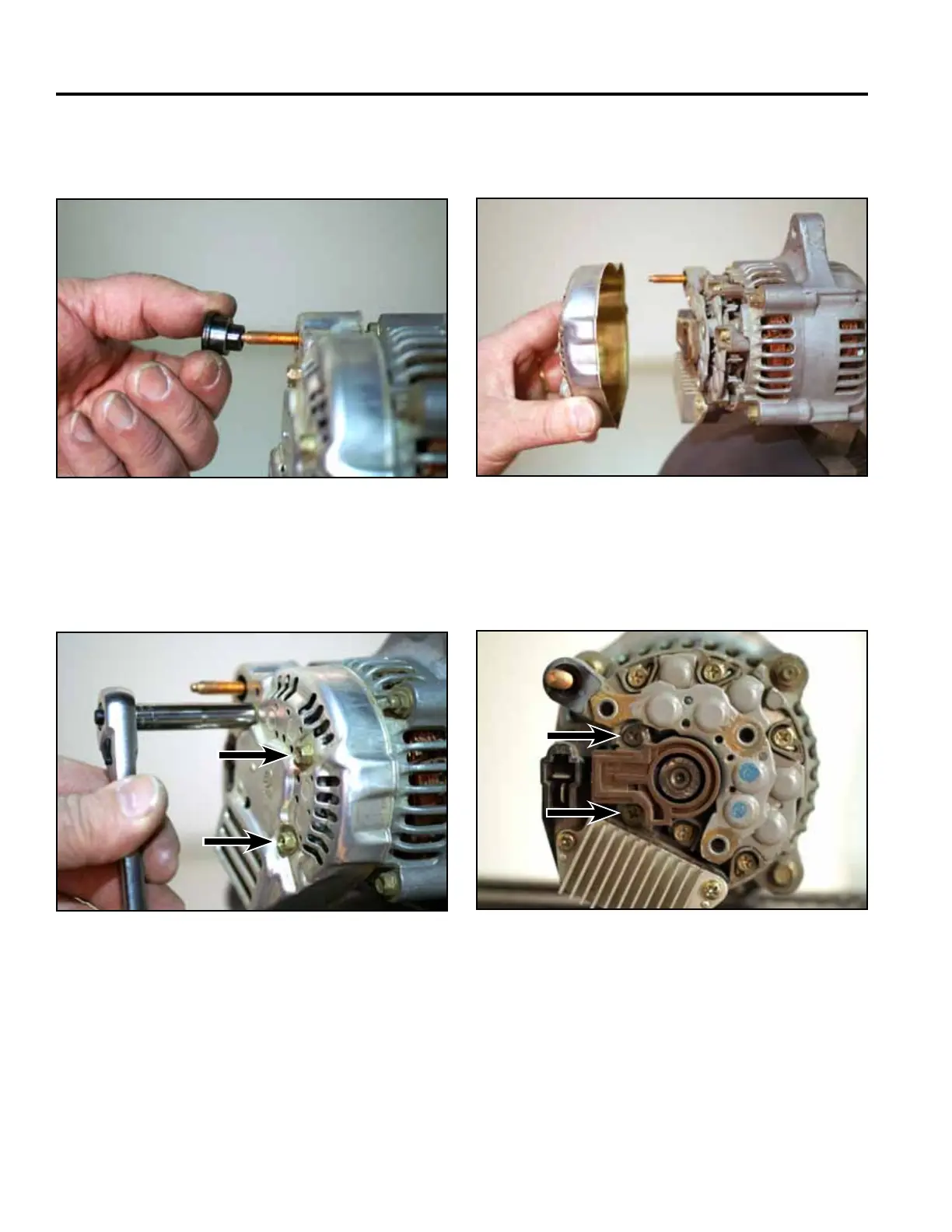

6. Slidetheinsulationbushingoffthebatterypost(Fig.
0663).
Fig 0663 PICT-8172a
7. Usinga7mmsocket,removethe3boltssecuring
theendcovertothealternator(Fig.0664).
Fig 0664 PICT-8175a
8. Removetheendcoverfromthealternator(Fig.
0665).
Fig 0665 PICT-8176a
9. Removethe2screwssecuringthebrushholderto
thealternatorassembly(Fig.0666).
Fig 0666 PICT-8178
