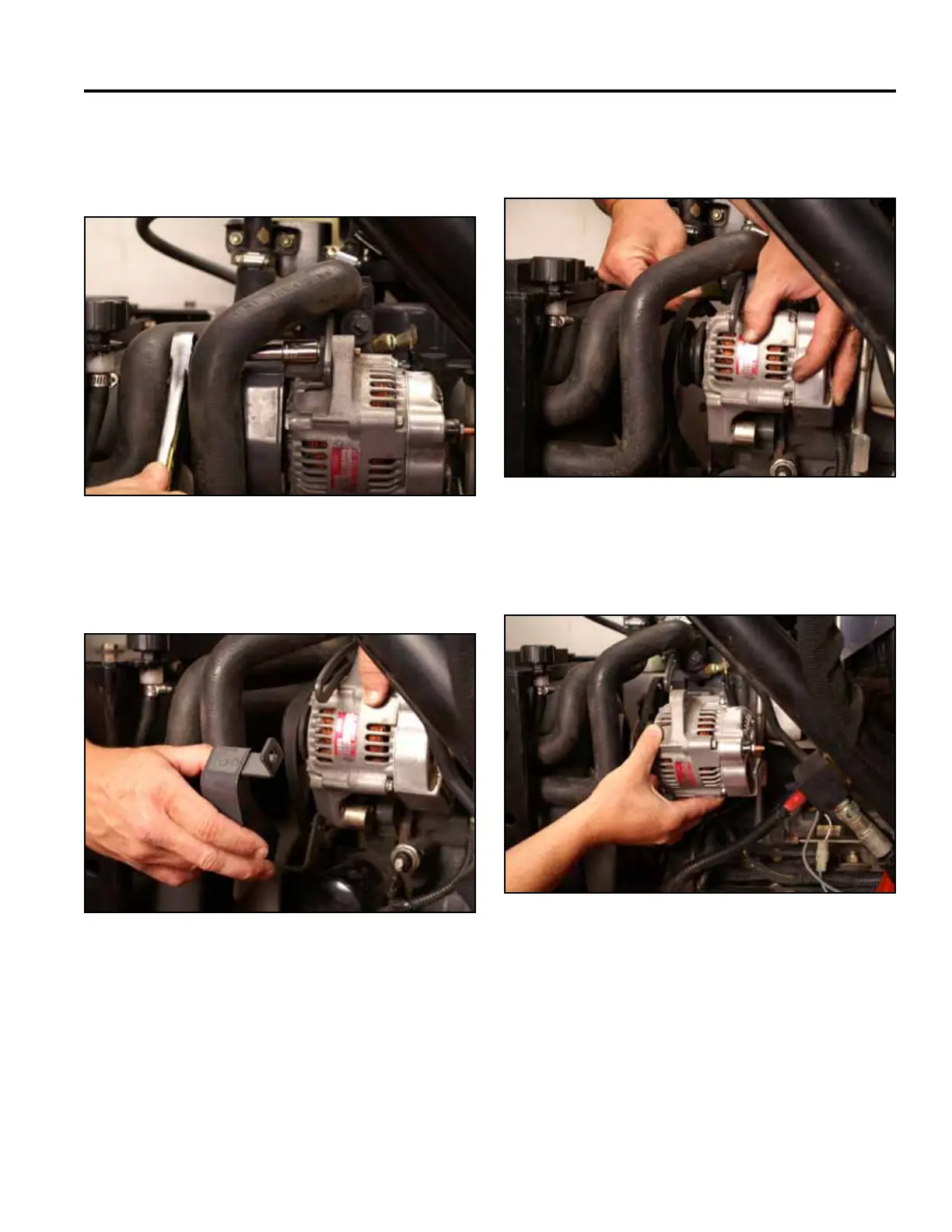

16. Usinga12mmsocket,supportthealternatorand
removethealternatorbelttensioningboltandlock-
washer(Fig.0188).
Fig 0188 PICT-5166
17. Removethealternatorbeltguard(Fig.0189).
19. Removethealternatorfromtheengine(Fig.0191).
Fig 0191 PICT-5179
Fig 0189 PICT-5177
18. Removethebeltfromthealternatorpulley(Fig.
0190).
Fig 0190 PICT-5178
