DRIVE SYSTEM
7-81TX525 Service Manual Rev. 000

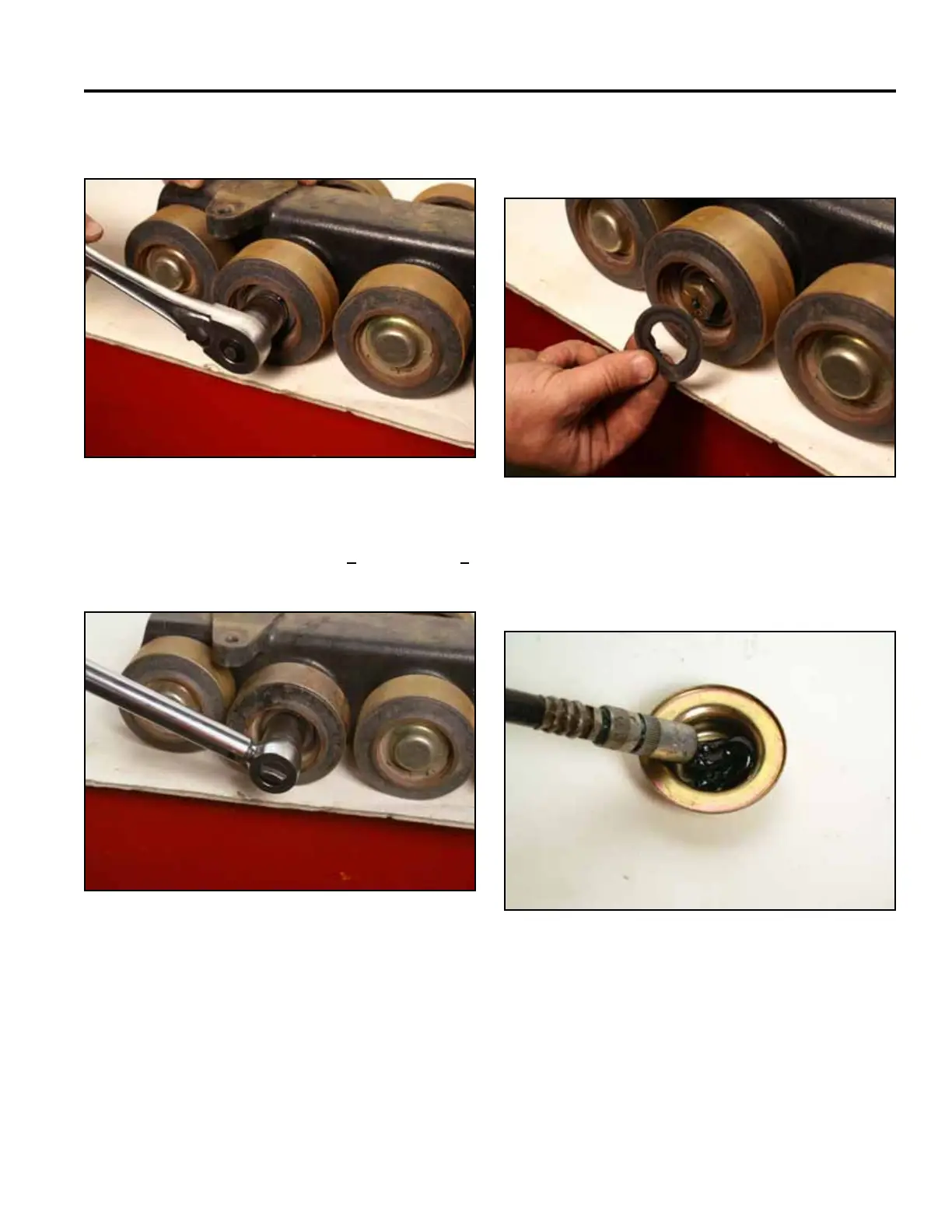

4. Install the road wheel bolt (Fig. 1563).
Fig 1563 PICT-4527
5. Torque the road wheel bolt to 150 + 15 ft-lbs. (203 +
20 Nm) (Fig. 1564).
Fig 1564 PICT-4540a
6. Install the bogie gasket over the bolt head, inside the
outer cap ring of the road wheel (Fig. 1565).
Fig 1565 PICT-4526
7. Apply grease to the cavity in the road wheel bearing
cap (Fig. 1566).
Fig 1566 PICT-4542a
