BRAKES
8-25TX525 Service Manual Rev. 000
3. Place the brake and cable assembly into a bench
vise.
4. Using a 3/32” Allen wrench, loosen the set screws
on both tube guides (Fig. 1726).

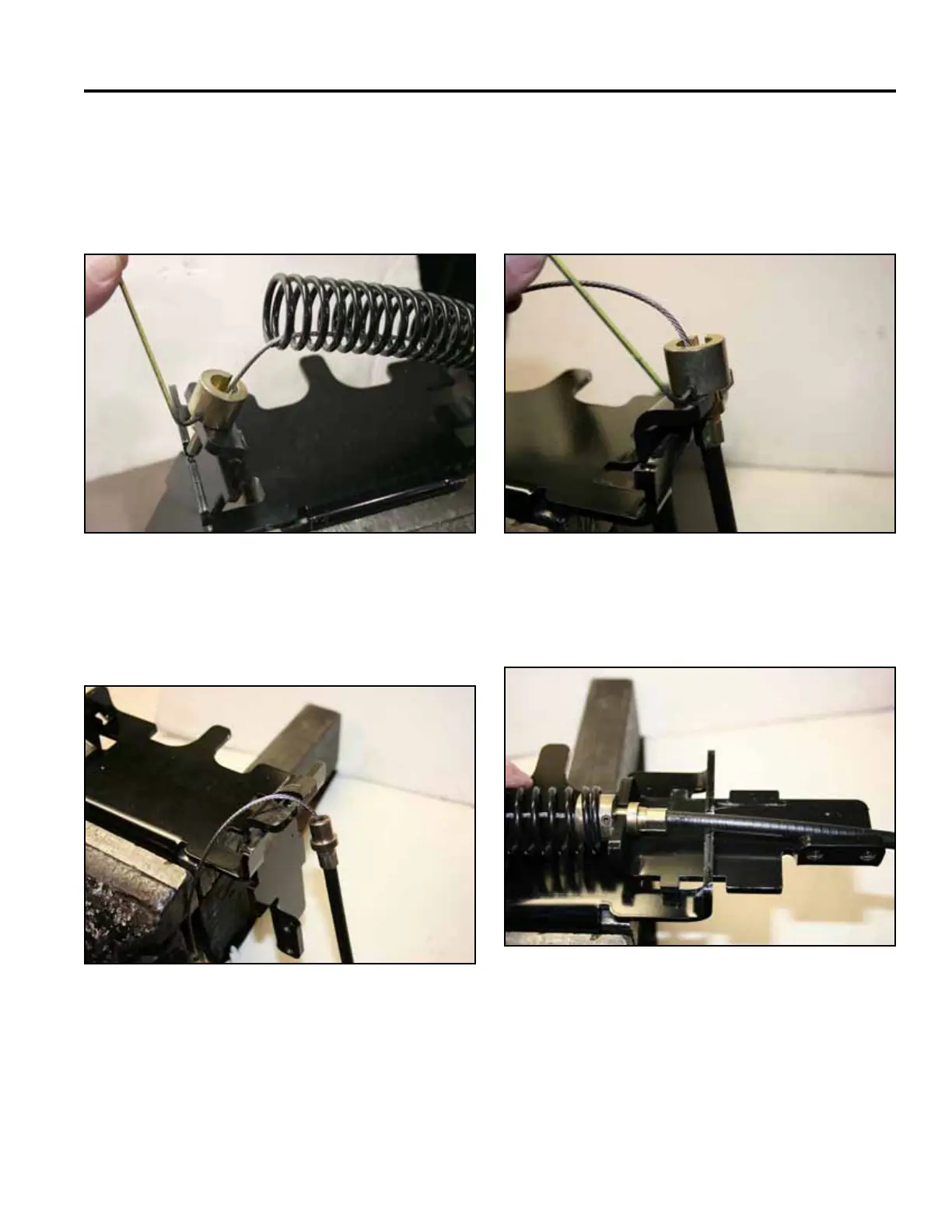

Fig 1726 IMG_7508a
5. Support the spring and tube guides and remove the
cable from the brake mounting bracket (Fig. 1727).
Fig 1727 IMG_7518
6. Place the new cable through the right hand brake
support bracket and place a tube guide (tube guide
set screw toward the bracket side) over the cable
and tighten tube guide set screw with 3/32” Allen
wrench (Fig. 1728).
Fig 1728 IMG_7516
7. Slide the spring over the cable (Fig. 1729).
Fig 1729 IMG_7520
