HYDRAULIC SYSTEM
6-102 Rev. 000 TX525 Service Manual

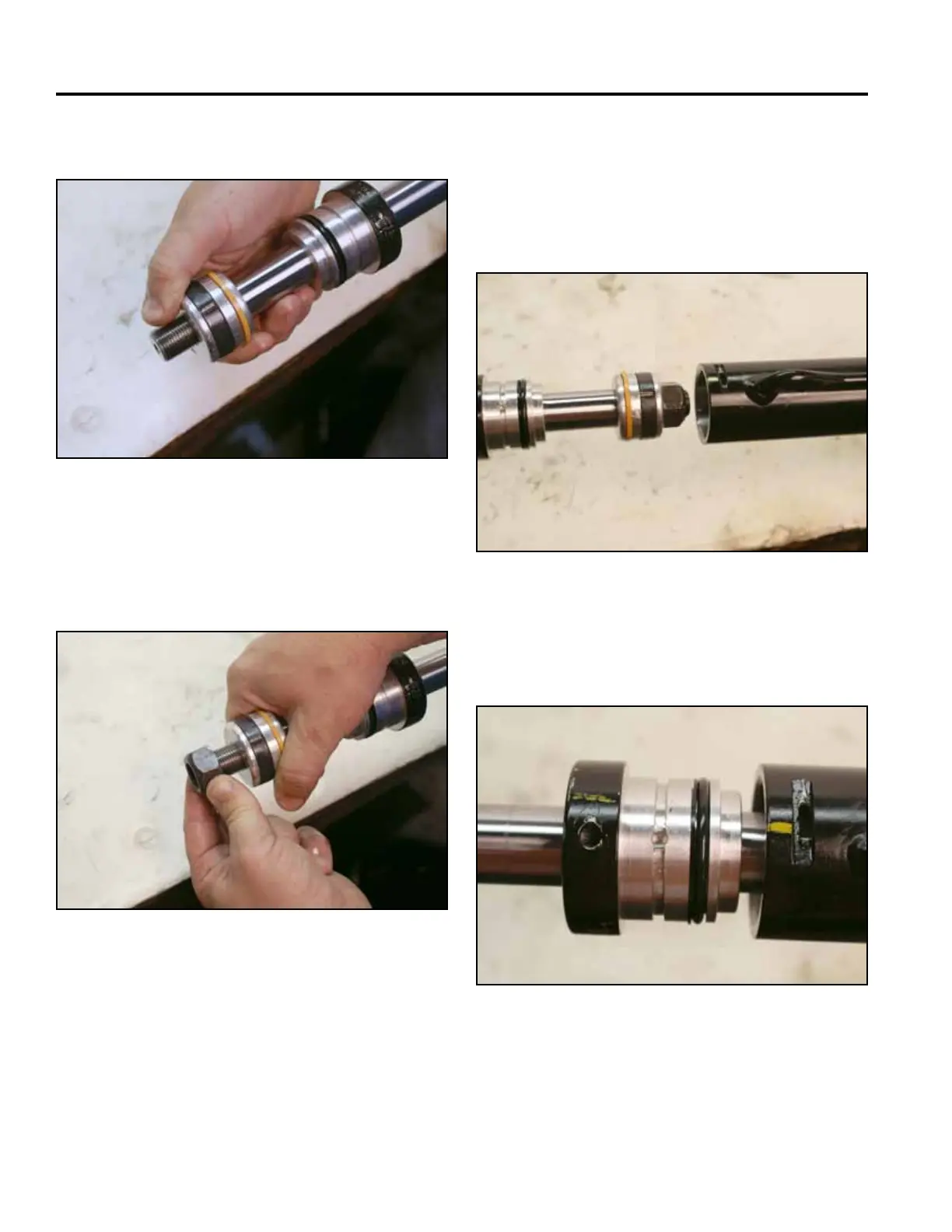

5. Slide the piston onto the cylinder ram (Fig. 1219). 7. Remove the ram from the vise and secure the
cylinder barrel into the vise.
8. Install the ram assembly into the cylinder barrel by
rotating the piston assembly while pushing the piston
into the barrel (Fig. 1221).
Fig 1219 PICT-3066a
Fig 1221 PICT-3068a
9. Rotate the head until the ring hole in the ring groove
is within the slot on the barrel (Fig. 1222).
6. Install the nut onto the end of the ram. Using a
1-1/8” socket, torque the nut to 100 - 120 ft-lbs.
(135.6 - 162.7 Nm) (Fig. 1220).
Fig 1222 PICT-3070a
Fig 1220 PICT-3067a
