ENGINE
4-62 Rev. 000 TX525 Service Manual

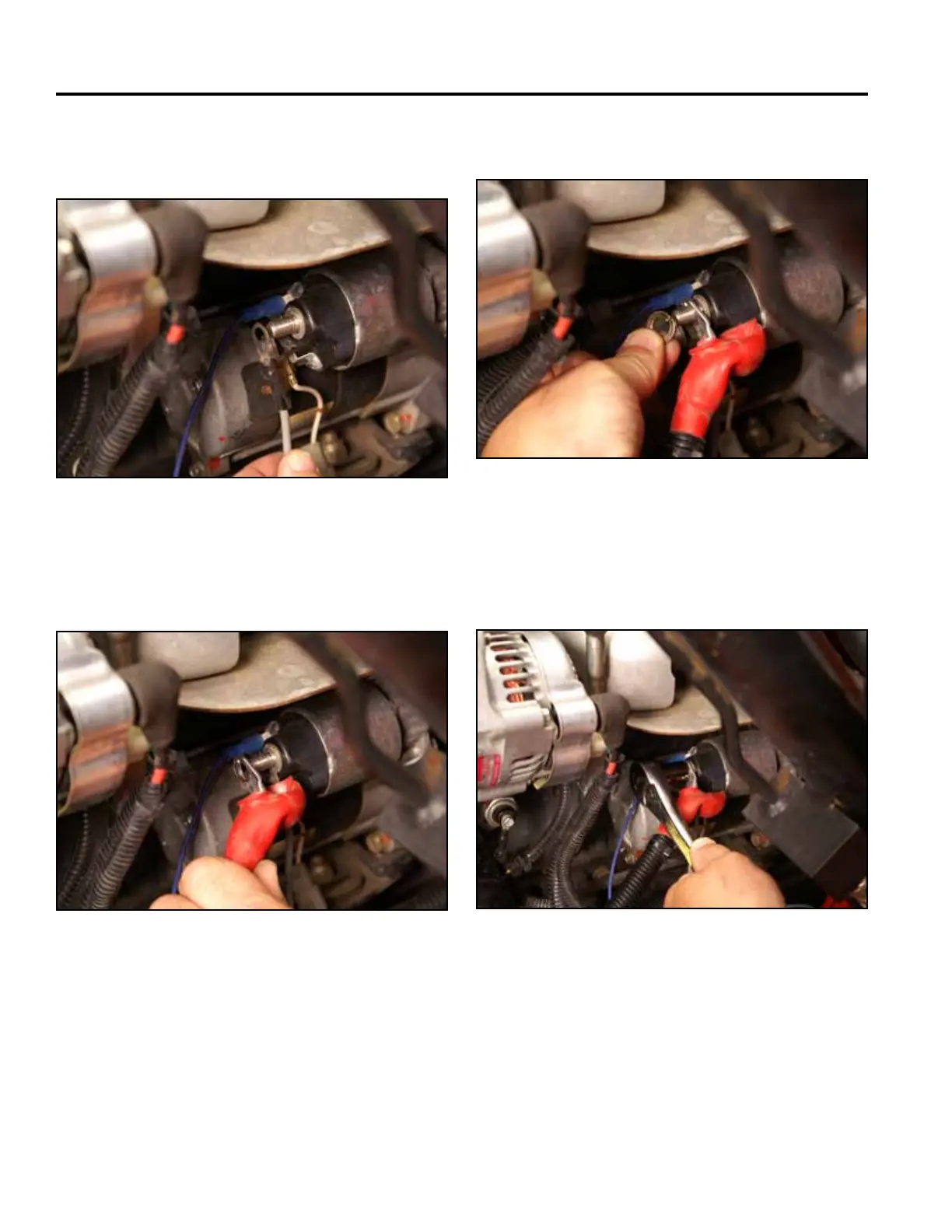

10. Slidethegreyfusiblelinkwireterminalontothe
starterterminal(Fig.0306).
Fig 0306 PICT-5193
11. Slidethepositivebatterycableontothestarter
terminal(Fig.0307).
Fig 0307 PICT-5192
13. Usinga12mmsocket,installanutretainingthe
positivebatterycable,greyfusiblelinkwireand
washertothestarterterminal(Fig.0309).
Fig 0309 PICT-5190
12. Slideawasherontothestarterterminal(Fig.0308).
Fig 0308 PICT-5191
