HYDRAULIC SYSTEM
6-43TX525 Service Manual Rev. 000

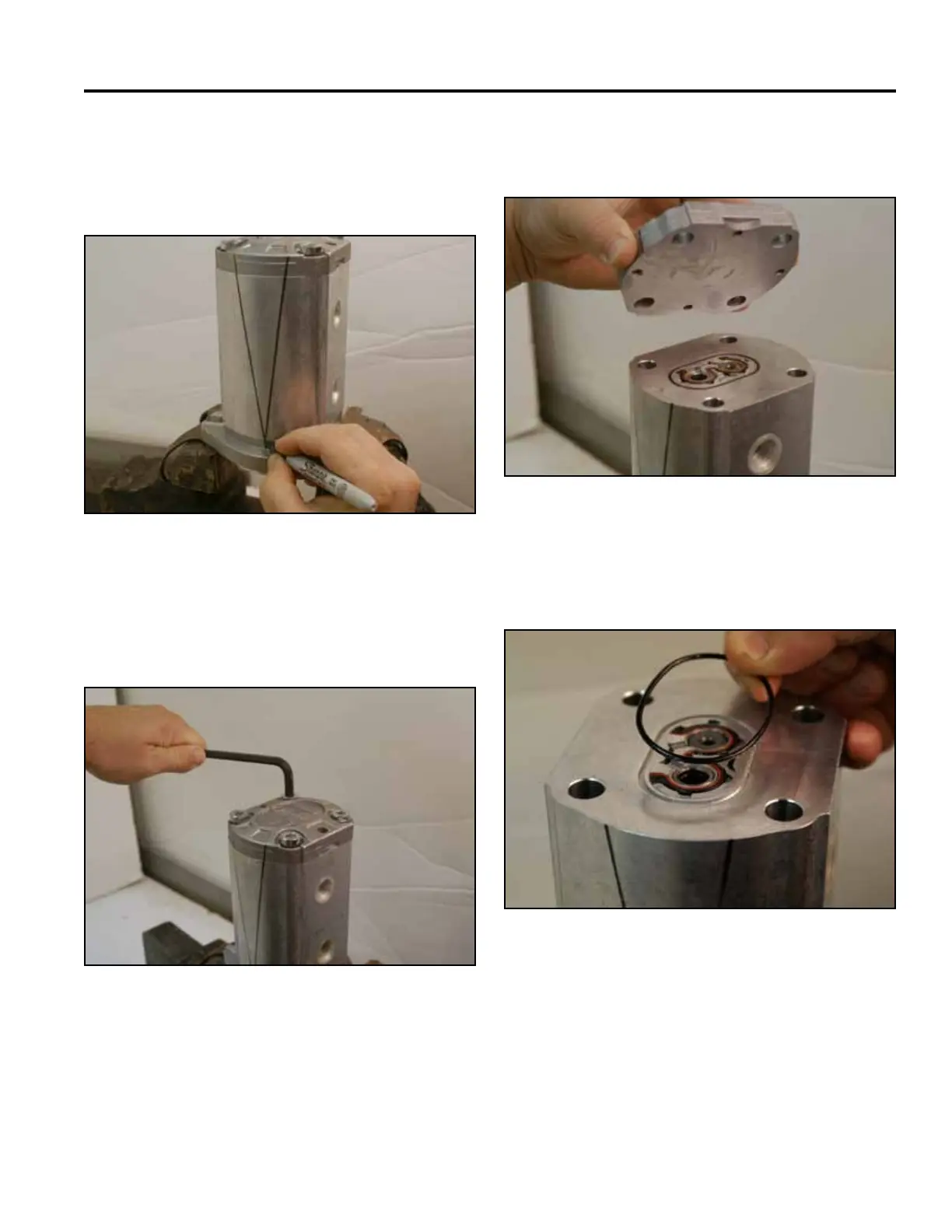

2. Secure the pump in a vise.
3. Mark the casing of the pump with a “V” that crosses
over all sections of the pump (Fig. 0990).
5. Remove the cover from the pump assembly (Fig.
0992).
Fig 0990 PICT-2824a
Fig 0992 PICT-2826a
6. Remove the cap gasket from the pump housing (Fig.
0993).
4. Using a 7mm Allen wrench, loosen and remove the 4
bolts and washers securing the pump sections (Fig.
0991).
Fig 0993 PICT-2828
Fig 0991 PICT-2825a
