HYDRAULIC SYSTEM
6-49TX525 Service Manual Rev. 000

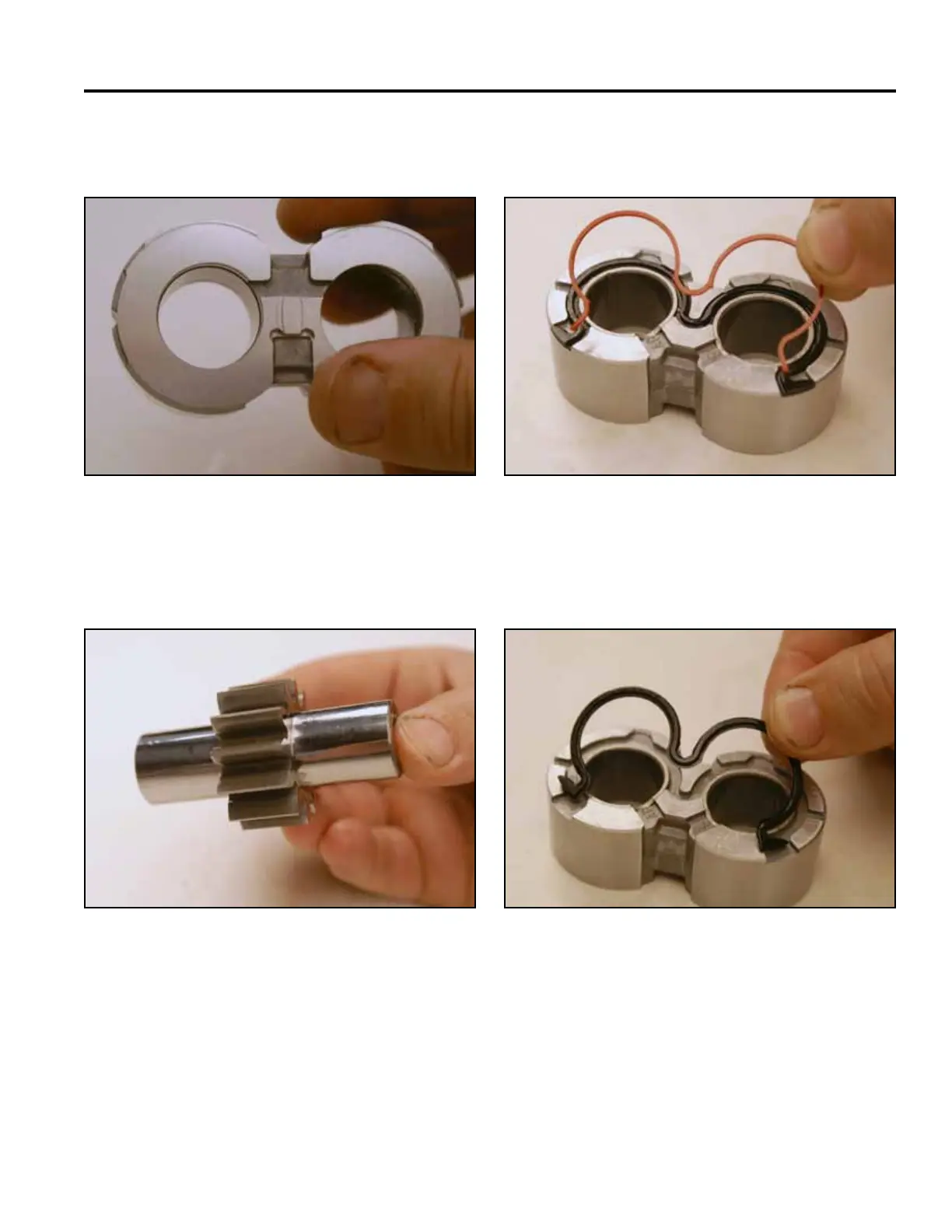

4. Inspect the gear surface of both of the bushings for
damage (Fig. 1014).
6. Remove the back-up ring from the top and bottom
bushings (Fig. 1016).
Fig 1014 PICT-2853a
Fig 1016 PICT-2855a
7. Remove the gear seal from the top and bottom
bushings (Fig. 1017).
5. Inspect the drive gear and driven gear surfaces for
damage (Fig. 1015).
Fig 1017 PICT-2856a
Fig 1015 PICT-2854a
