HYDRAULIC SYSTEM
6-76 Rev. 000 TX525 Service Manual

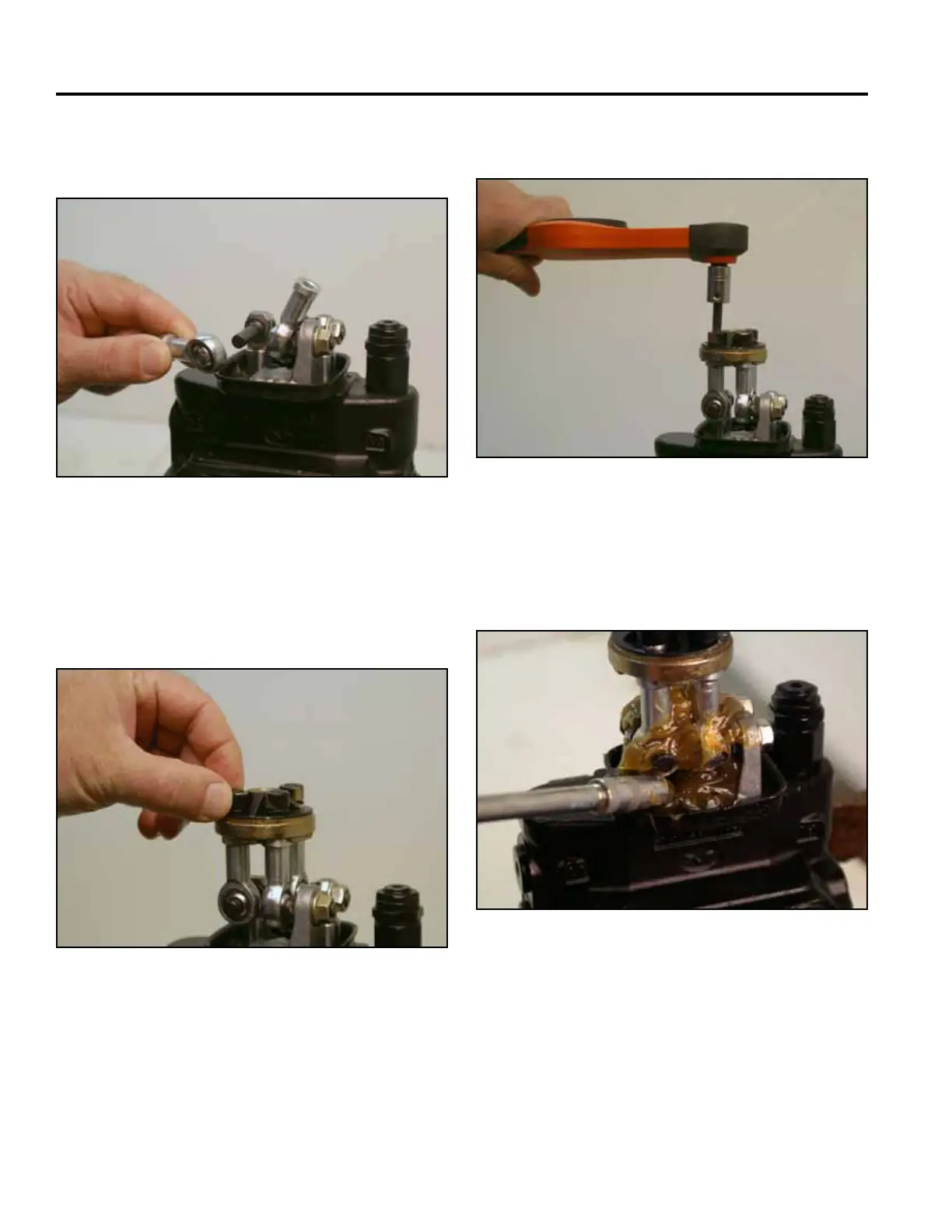

6. Slide the end of the joystick joint onto the pin for the
tilt cylinder (Fig. 1119).
8. Torque the 3 bolts to 17.7 ft-lbs. (24 Nm) (Fig. 1121).
Fig 1119 PICT-2601a
Fig 1121 PICT-2603a
9. Lubricate all of the articulated parts inside the
mechanical joystick area with synthetic base grease
grade NLGI2 (Fig. 1122).
7. Position the articulated holder with 3 hex head
screws and lock washers onto the valve assembly
and thread the 3 bolts onto the joystick joints (Fig.
1120).
Fig 1122 PICT-2655
Fig 1120 PICT-2602a
