HYDRAULIC SYSTEM
6-113TX525 Service Manual Rev. 000

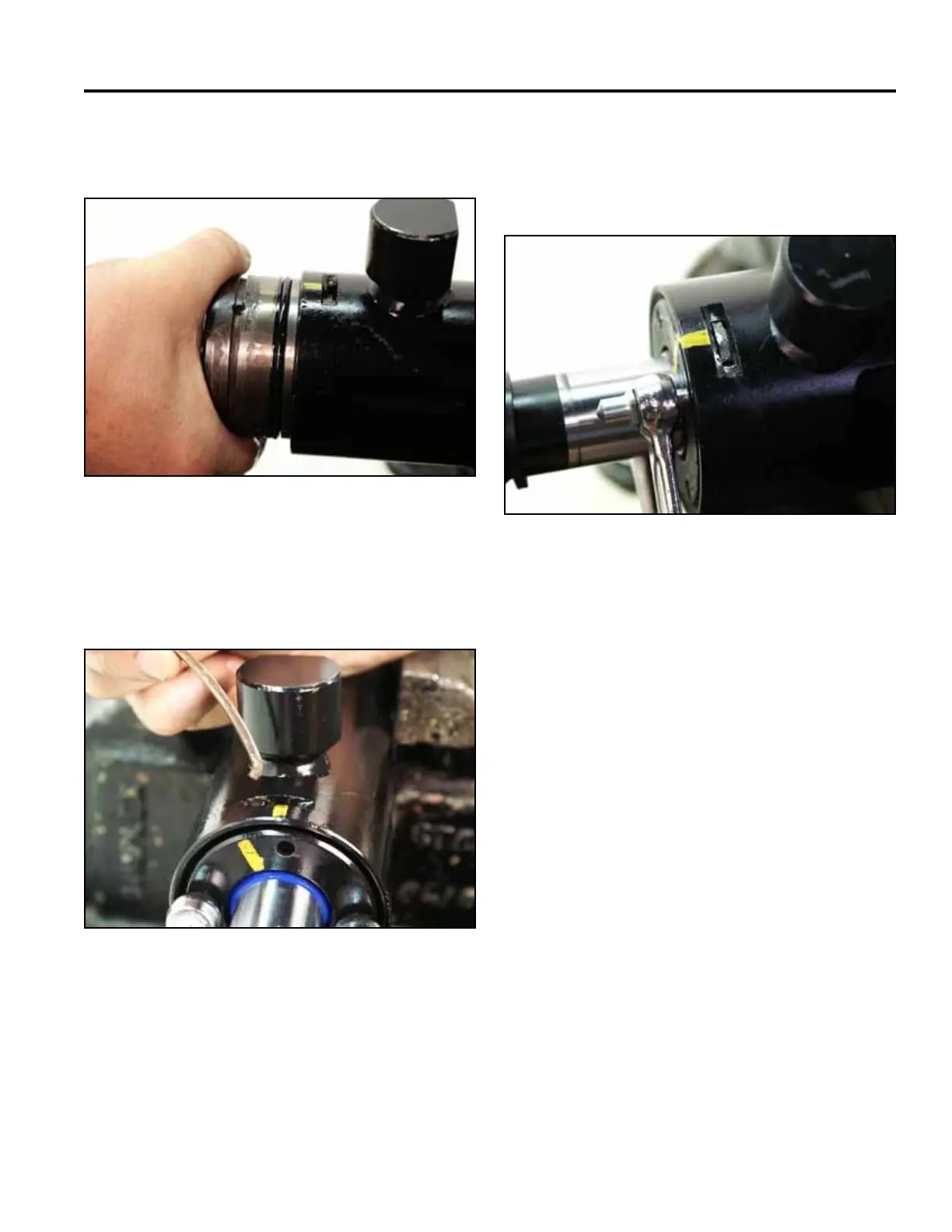

7. Rotate the head until the ring hole in the ring groove
is within the slot on the barrel (Fig. 1258).
9. Begin rotating the spanner wrench so that the head
pulls the ring inside the barrel. Continue rotating
until the beveled edge of ring is completely installed
inside the barrel on the head assembly (Fig. 1260).
Fig 1258 PICT-2988
Fig 1260 PICT-2994
8. Insert the bent end of the ring through the notch in
the barrel and into the hole in the groove. Place the
spanner wrench onto the head assembly (Fig. 1259).
Fig 1259 PICT-2991
