DRIVE SYSTEM
7-60 Rev. 000 TX525 Service Manual

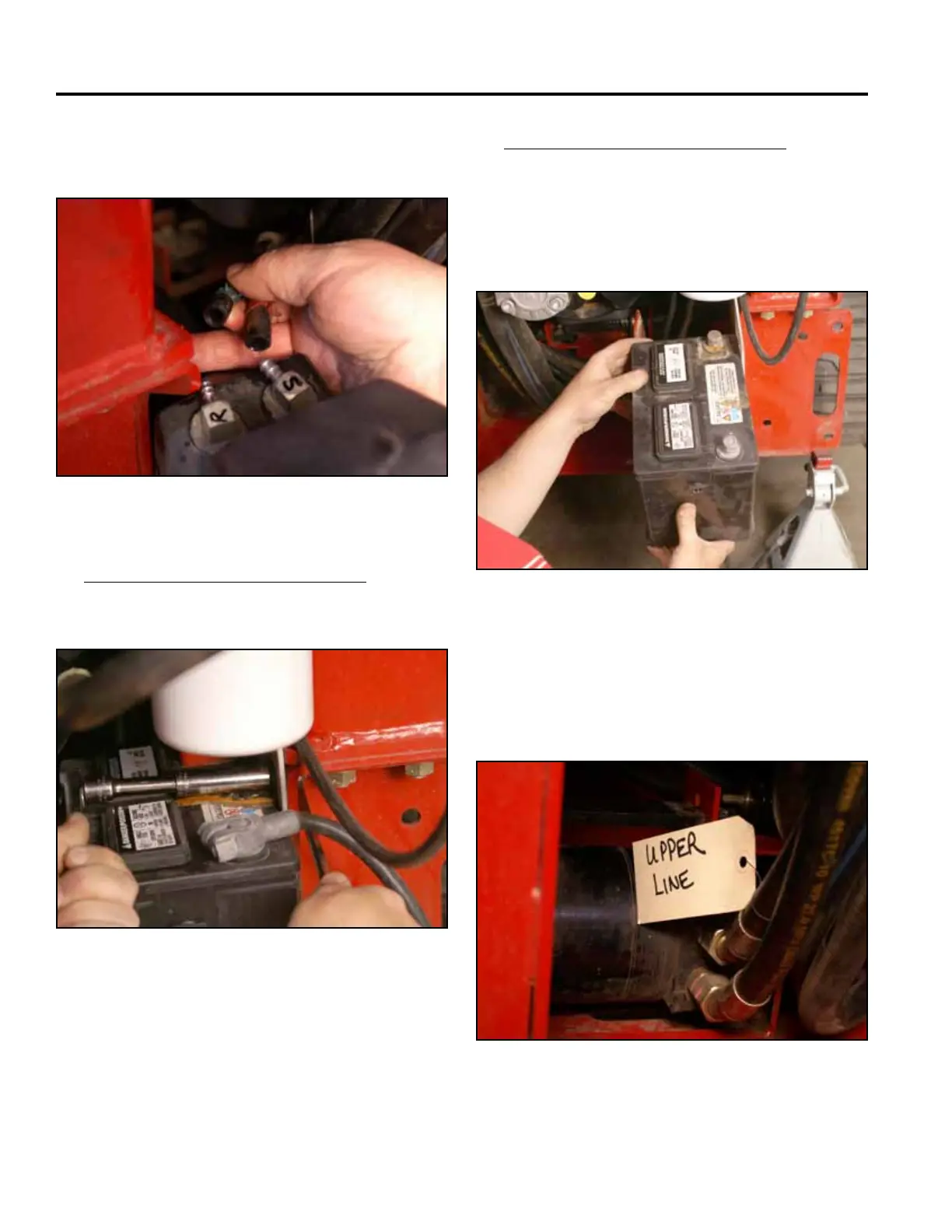

17. Slidethe2fuellinesoffthefueltankttings.Re-
move the fuel tank. (Fig. 1489).
Fig 1489 PICT-4265
18. For right hand wheel motor removal only: Remove
the bolt, washer and nut securing the battery clamp
to the frame. Remove the battery clamp (Fig. 1490).
Fig 1490 PICT-4310a
19. For right hand wheel motor removal only: Slide the
battery partially out of the battery mount. Disconnect
the negative battery cable from the battery. Slide the
battery out of the battery mount further to access
the positive battery cable terminal. Disconnect the
positive battery cable and remove the battery and
battery guard from the battery mount (Fig. 1491).
Fig 1491 PICT-4312a
20. Before disconnecting the hydraulic lines from the
wheel motor, mark or tag one of the hydraulic lines;
this will ensure the hydraulic lines are reinstalled
correctly (Fig. 1492).
Fig 1492 PICT-4459
