DRIVE SYSTEM
7-78 Rev. 000 TX525 Service Manual

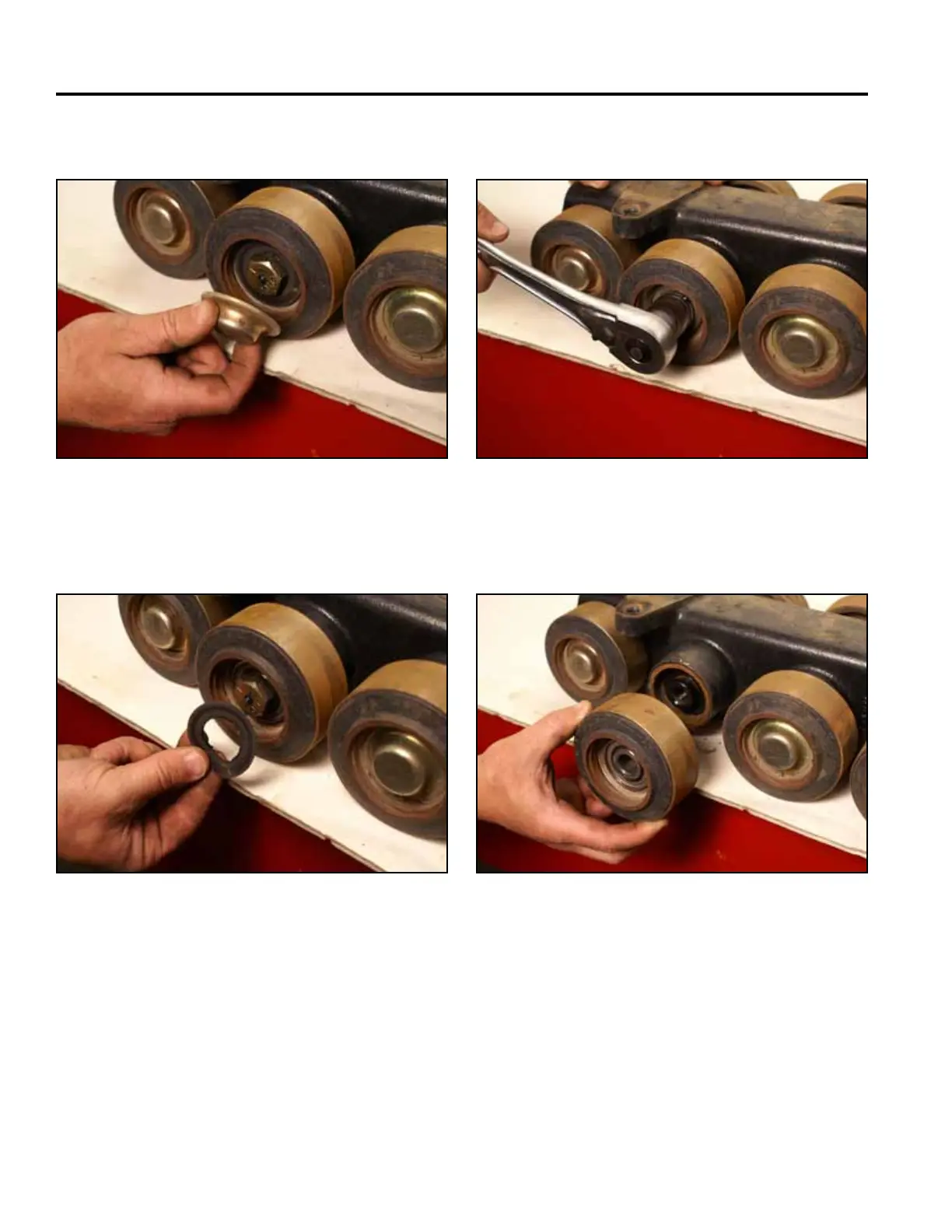

4. Remove the road wheel bolt (Fig. 1553).
Fig 1553 PICT-4527
5. Slide the road wheel off the track guide (Fig. 1554).
Fig 1554 PICT-4529
2. Remove the wheel bearing cap (Fig. 1551).
Fig 1551 PICT-4525
3. Remove the bogie gasket (Fig. 1552).
Fig 1552 PICT-4526
