DRIVE SYSTEM
7-100 Rev. 000 TX525 Service Manual

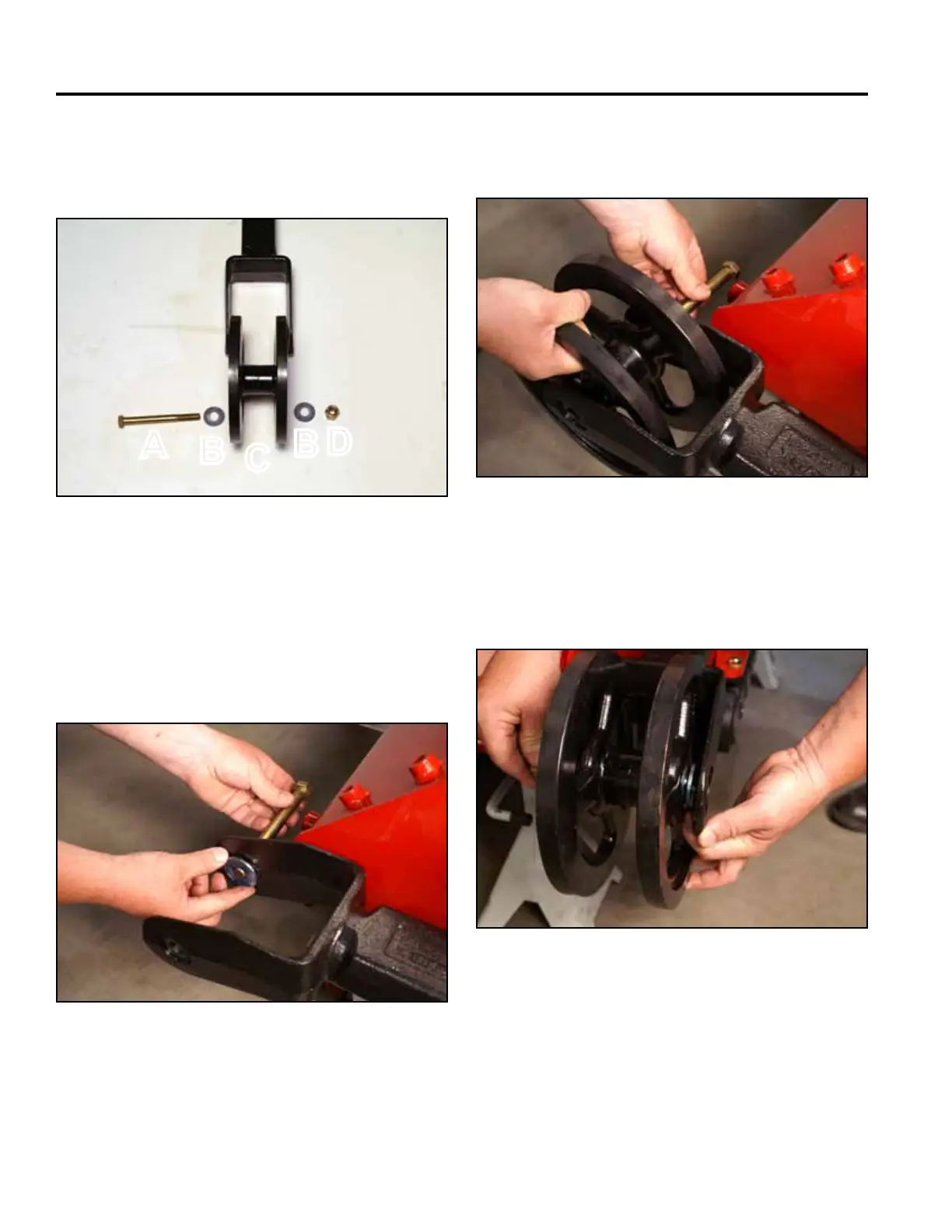

3. Reassemble the tensioner wheel to the tension arm.
Tensioner Wheel Assembly (Fig. 1630):
4. Insert the tensioner wheel axle bolt through the
inside of the tensioner wheel arm. Slide a greased
washer onto the axle bolt (Fig. 1631).
Fig 1630 PICT-5354a
Fig 1631 PICT-5349
5. Position the tensioner wheel and slide the axle bolt
partially through the wheel (Fig. 1632).
Fig 1632 PICT-5350
A. Bolt C. Tensioner wheel
B. Washer (2) D. Nut
A
C
B
B
D
6. Position a greased washer between the tensioner
wheel and the tension arm and continue sliding the
axle bolt through (Fig. 1633).
Fig 1633 PICT-5352
