HYDRAULIC TESTING
9-2 Rev. 000 TX525 Service Manual

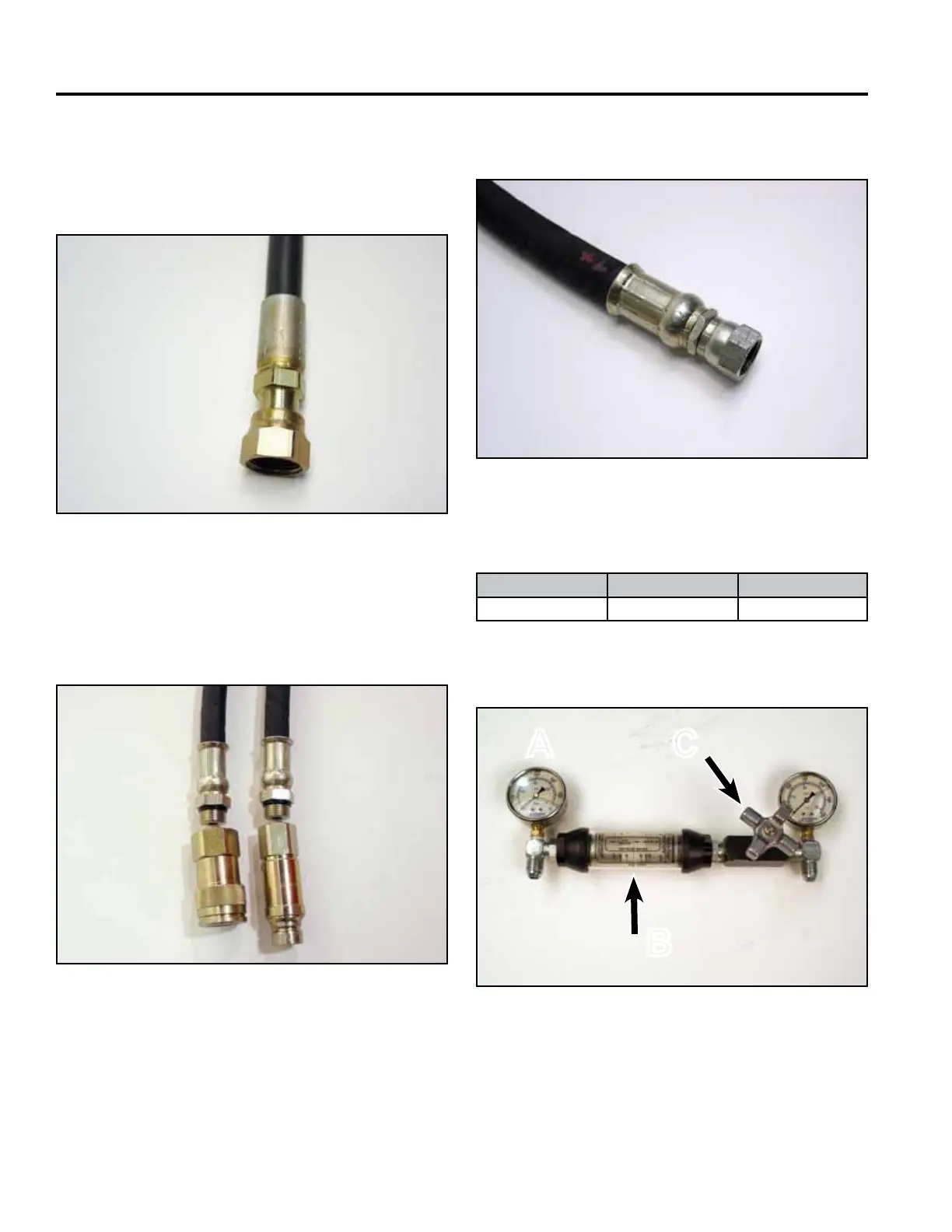

Fig 1841 DSC-0580a
E. Couplers
Coupler End – 7/8” - 14 UNF-2B O-ring Seal (Fig. 1841)
Test hoses:
Diameter Length PSI Rated
#8 3’ (91.4cm) 5000
Fig 1842 DSC-0577a
Test Gauge – 3/4”-16 – 37º Female (Fig. 1842)
Fig 1843 PICT-3520a
E. Flow Tester (Fig. 1843)
A. Pressure gauge C. Restriction valve
B. Flow gauge
A
B
C
Fig 1840 DSC-0579a
D. RH Drive Hydrostat Pump
Pump Fitting – 13/16” - 16 ORFS – Straight Female (Fig.
1840)
