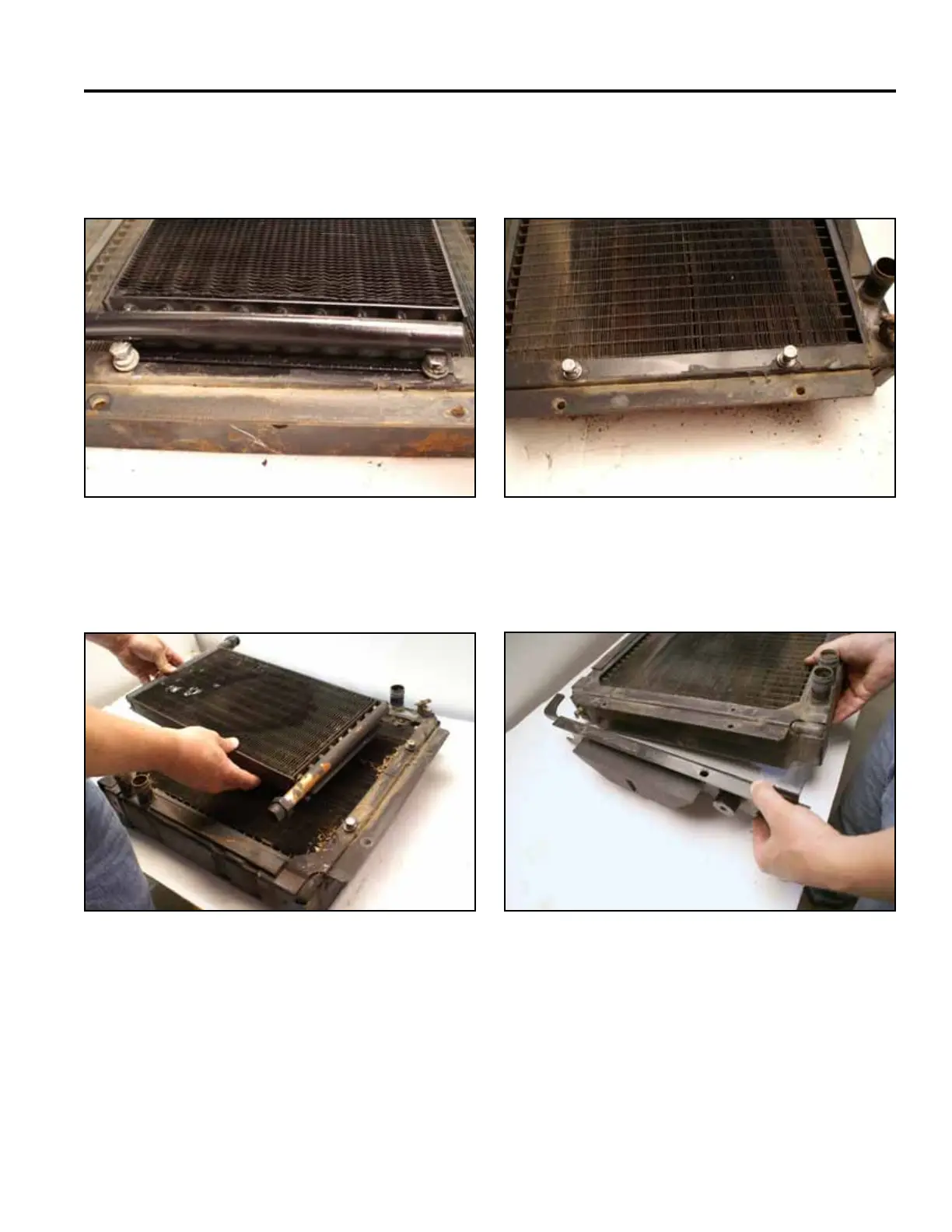

5. Usinga1/2”wrench,loosenthe2boltssecuring
thebottomsideoftheoilcoolertotheradiator(Fig.
0115).
7. Removethe2oilcoolermountingbolts,lockwash-
ersandwashersthatareremainingintheradiator
(Fig.0117).
Fig 0115 PICT-5066
Fig 0117 PICT-5090
8. Removetheradiatorbracket(Fig.0118).
6. Removetheoilcoolerfromtheradiator(Fig.0116).
Fig 0118 PICT-5092a
Fig 0116 PICT-5065
