ENGINE
4-14 Rev. 000 TX525 Service Manual

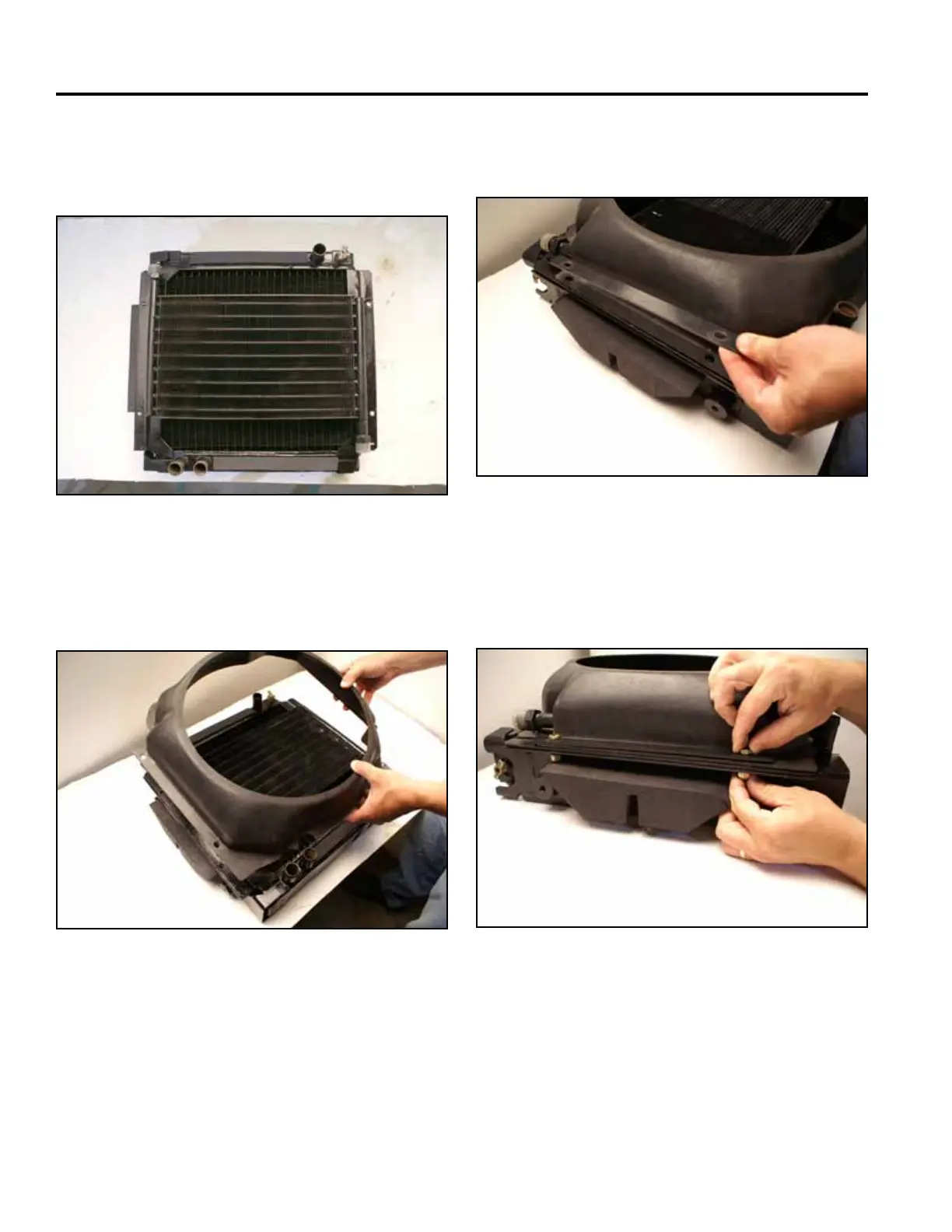

6. Centertheoilcoolerontotheradiator(Fig.0127)
andprogressivelytighteneachofthe4boltsto
evenlysecuretheoilcoolertotheradiator.
8. Positionthebackingplateontothefanshroud(Fig.
0129).
Fig 0127 PICT-5105a
Fig 0129 PICT-5107
9. Looselyinstall2boltsandnutssecuringthebacking
plateandfanshroudtotheradiator/oilcooleras-
sembly(Fig.0130).
7. Positionthefanshroudontotheradiator/oilcooler
assembly(Fig.0128).
Fig 0130 PICT-5108
Fig 0128 PICT-5106
