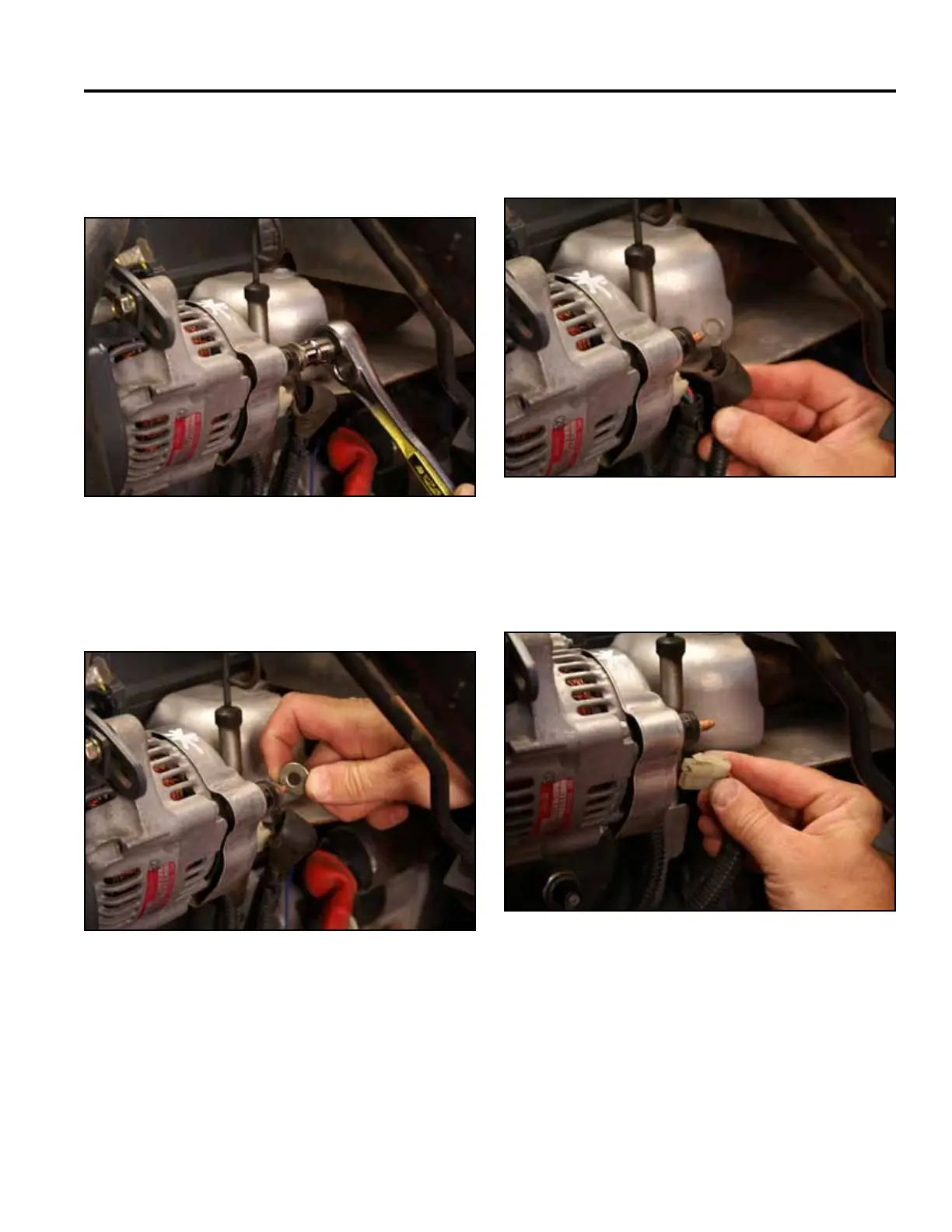

9. Removethewasherfromthealternatorterminal
(Fig.0181).
8. Removethebootfromtheterminal.Usinga10mm
socket,removethenutsecuringthepositivecableto
thealternatorterminal(Fig.0180).
11. Unplugtheharnessconnectorfromthealternator
(Fig.0183).
Fig 0181 PICT-5162
Fig 0180 PICT-5161
Fig 0183 PICT-5165
10. Removethepositivebatterycableterminalfromthe
alternatorterminal(Fig.0182).
Fig 0182 PICT-5164
