6-8 Qualitek mR Owner’s Guide

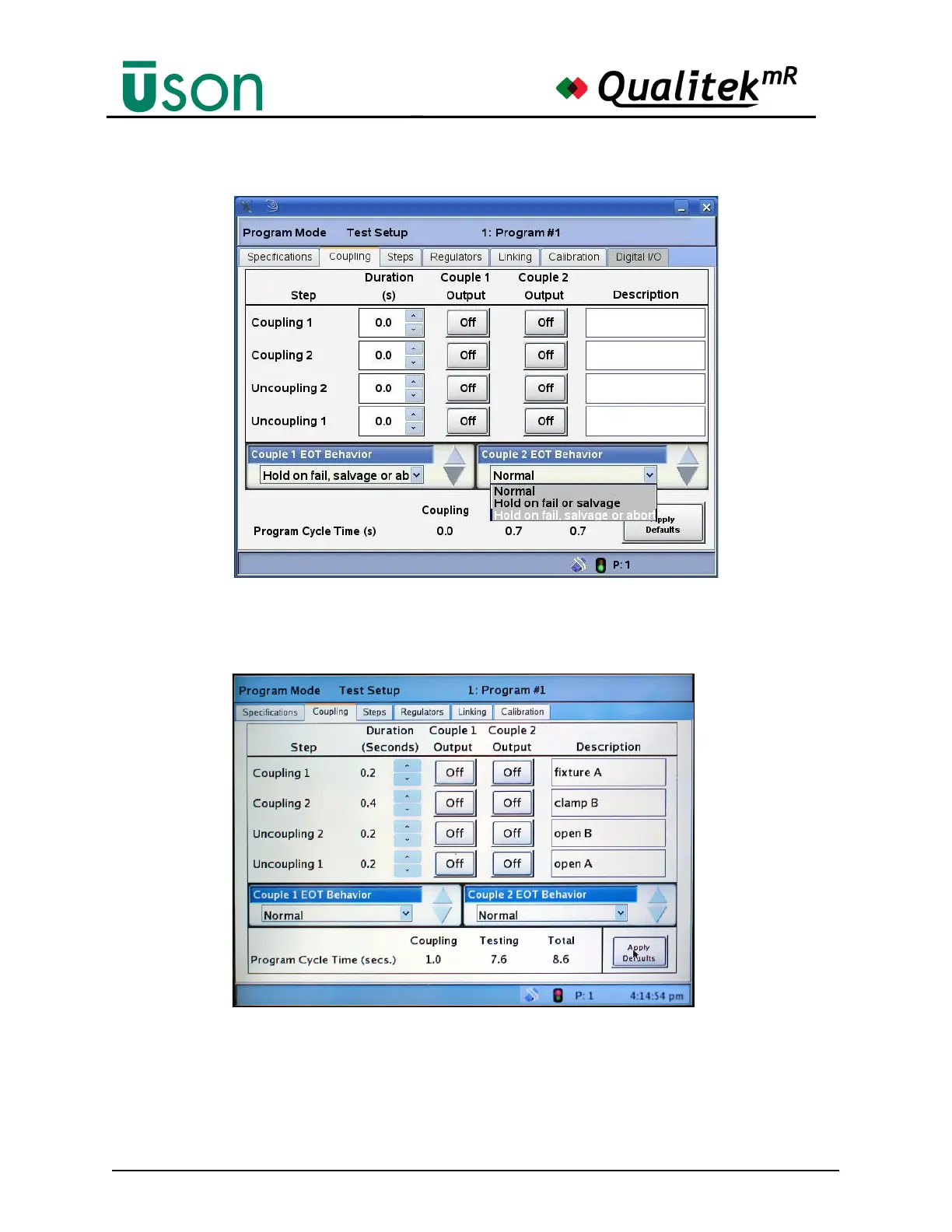

Coupling Setup Example
The illustration above shows that 4 coupling times are set which will add 1 second
of coupling time to current program.
Use the buttons in the Couple 1 and Couple 2 Output columns as needed to use the
desired couple for the step. If Off, the couple will not activate.
