Program Mode 6-9
The Coupling 1 and Coupling 2 always occur in order at the start of the test and
Uncoupling 2 and Uncoupling 1 will occur at the end of the test.
If text is entered in Description, then that descriptive name will be used whenever
appropriate. For example, the Details screen shown below shows the descriptive
coupling names that were set in the example
Apply Defaults
Apply Defaults button resets the parameters on this screen to the internally
computed defaults. If values had manually been entered, confirmation will be
required.
.

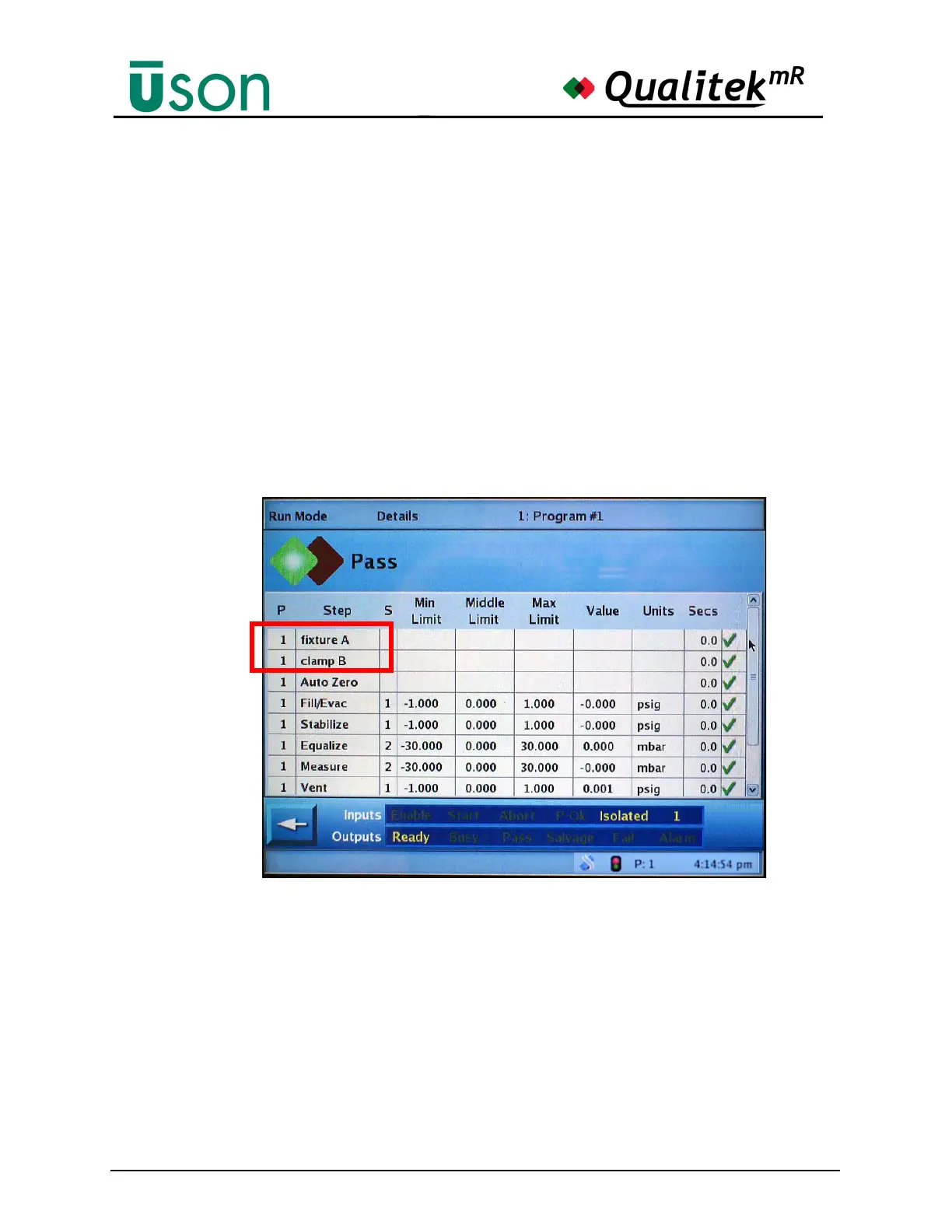

Couple steps
and descriptive
names, if used,
appear in such
places as the
Details screen
shown here.
