Engine (continued)
Removing the PTO Electric Clutch

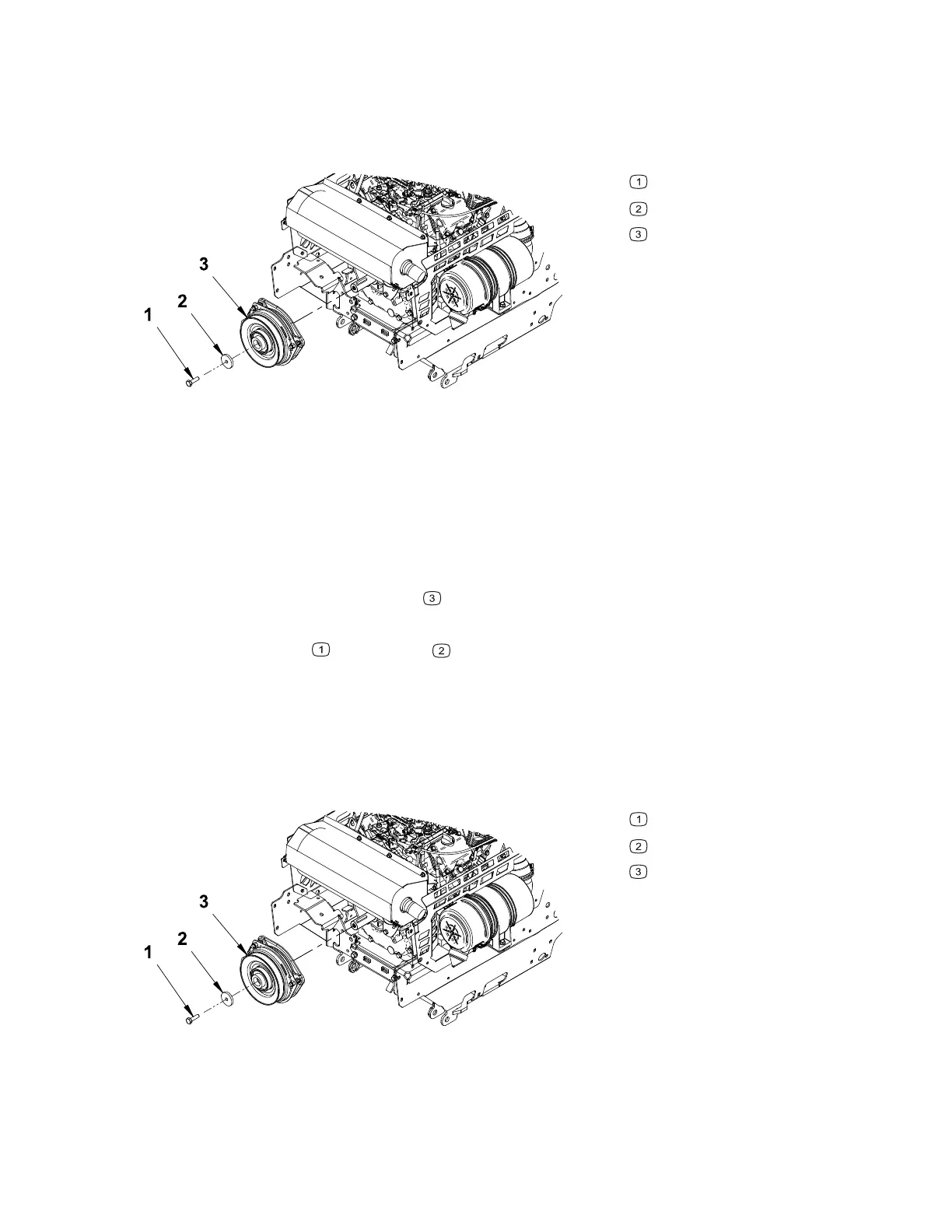

Figure 17
G452248
Bolt
Washer
Electric clutch
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the grill; refer to Removing and Installing the Grill, page 7–14.
4. Remove the PTO drive belt.
5. Locate the PTO electric clutch
on the engine crankshaft and disconnect the
clutch electrical connector from the main wiring harness.
6. Remove the bolt
and washer securing the clutch to the crankshaft.
7. Remove the clutch from the crankshaft.
Installing the PTO Electric Clutch
Figure 18
G452248
Bolt
Washer
Electric clutch
1. Install the clutch on the crankshaft aligning the keyway of the clutch with the key
of the crankshaft. Ensure that the isolator mounting bracket is between the torque
bracket isolators.
