8-10 Phaser 7750 Printer Service Manual

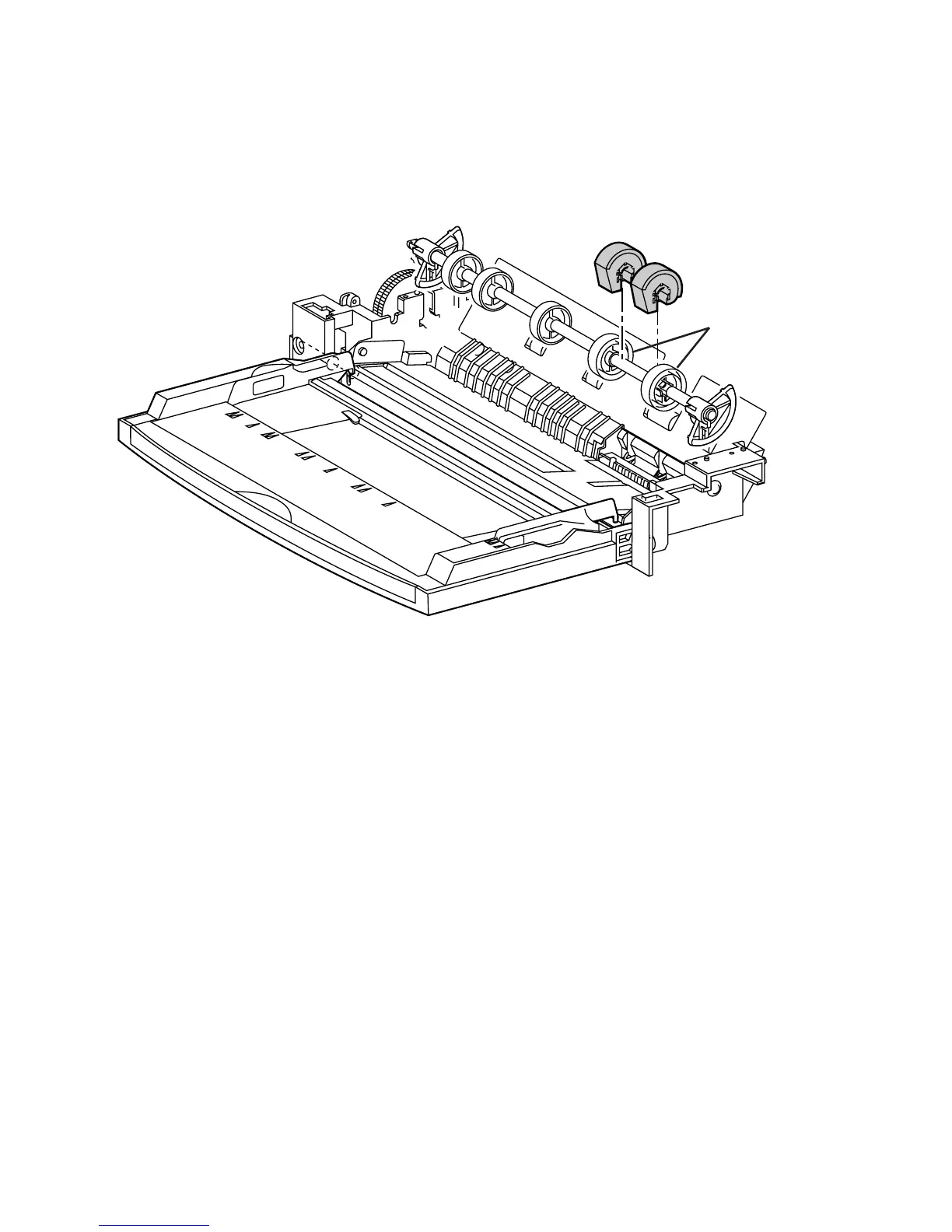

Tray 1 / MPT Paper Pick Rollers
1. Open the Left Hand Door A and locate the pick rollers near the duplex chute.
2. Lift the tab and slide the white retainers away from the pick rollers.
3. Slide the pick rollers off the retaining pins.
4. Lift and remove the pick rollers.
7750-159
White
Retainers
