Service Parts Disassembly 8-61

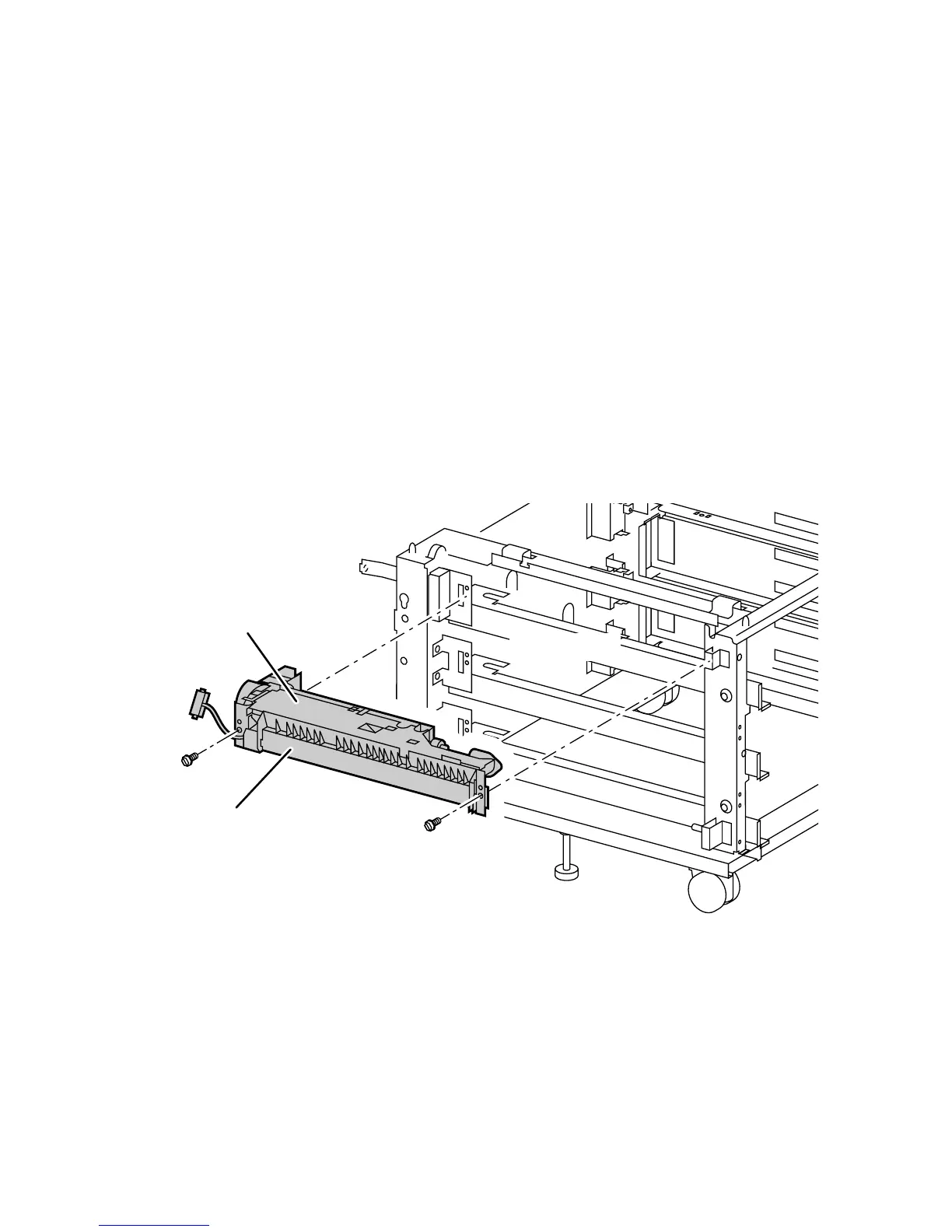

LTD/HCF Feeder Paper Feed Motor Assembly
1. Remove the left-hand cover.
2. Open the tray halfway.
3. Disconnect the wiring harness.
4. Remove the 2 screws holding the Tray 2 feeder assembly, not the screws securing
the lower tray bracket.
5. Remove the tray feeder assembly.
6. Some manipulation may be required to disengage the gears.
Removal of Motor
1. Disconnect the wiring harness from the motor.
2. Remove the 2 screws securing the motor to the feeder bracket.
3. Lift the motor straight out of the bracket to clear the gear on the motor shaft.
4. When reinstalling the motor, it may be necessary to manually rotate the gears to
mesh them with the other gears.
7750-16
