ABS (Anti-lock Brake System)

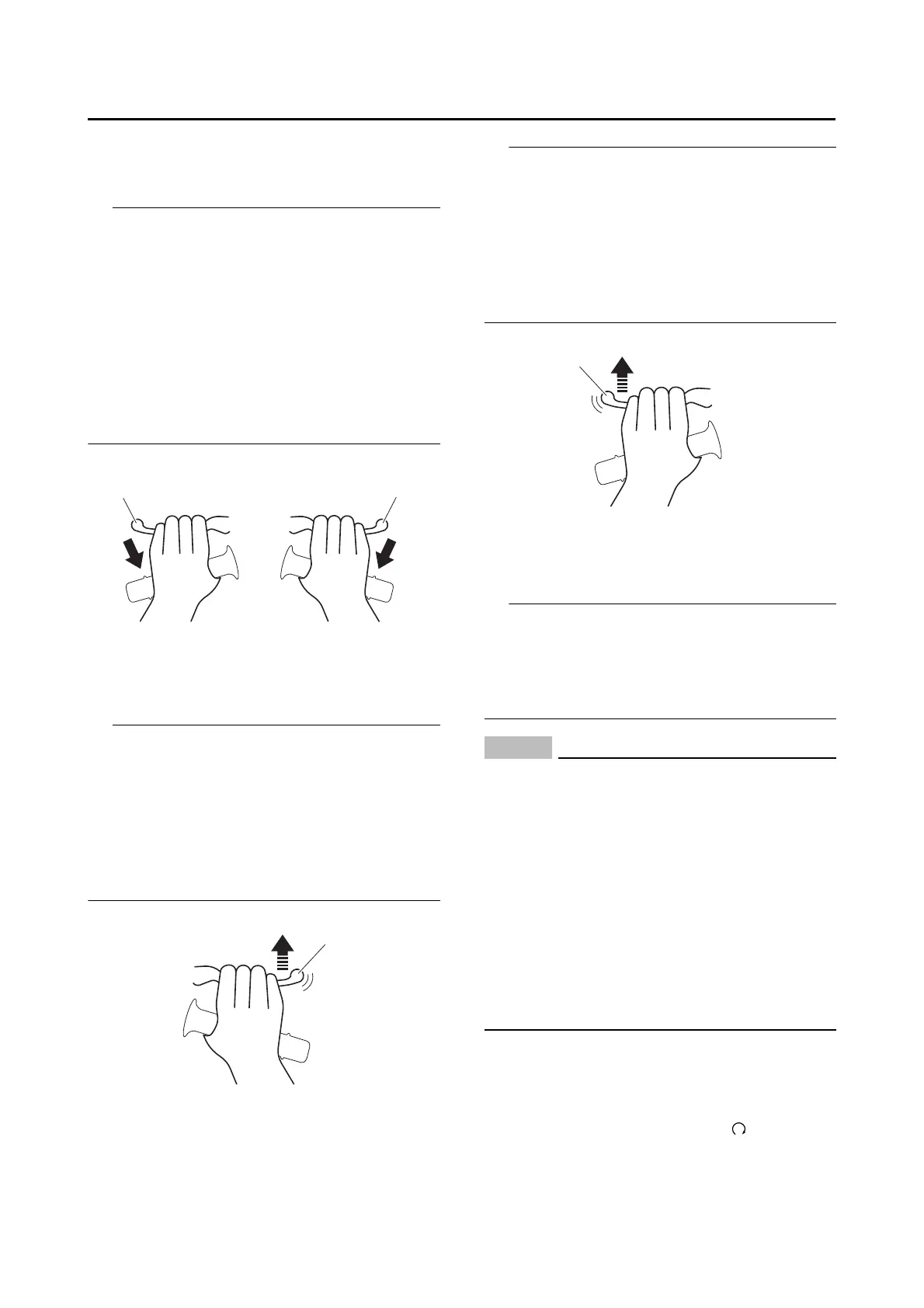

8. Click “Actuator Check”, and then operate the
front brake lever “1” and rear brake lever “2”
simultaneously.
• The hydraulic unit operates 1 second after the
front brake lever and rear brake lever are oper-
ated simultaneously and continues for approx-
imately 5 seconds.
• The operation of the hydraulic unit can be con-
firmed using the indicator.
On: The hydraulic unit is operating.
Flashing: The conditions for operating the hy-
draulic unit have not been met.
Off: The front brake lever and rear brake lever
are not being operated.
9. A reaction-force pulsating action is generated
in the front brake lever “1” and continues for a
few seconds.
• The reaction-force pulsating action consists of
quick pulses.
• Be sure to continue operating the front brake
lever and rear brake lever even after the pul-
sating action has stopped.
• “ON” and “OFF” on the tool screen indicate
when the brakes are being applied and re-
leased respectively.
10.After the pulsating action has stopped in the
front brake lever, it is generated in the rear
brake lever “1” and continues for a few sec-
onds.
• The reaction-force pulsating action consists of
quick pulses.
• Be sure to continue operating the front brake
lever and rear brake lever even after the pul-
sating action has stopped.
• “ON” and “OFF” on the tool screen indicate
when the brakes are being applied and re-
leased respectively.
11.After the pulsating action has stopped in the
rear brake lever, it is generated in the front
brake lever and continues for a few seconds.
• The reaction-force pulsating action consists of
quick pulses.
• “ON” and “OFF” on the tool screen indicate
when the brakes are being applied and re-
leased respectively.
NOTICE
ECA22080
• Check that the pulse is felt in the front
brake lever, rear brake lever, and again in
the front brake lever, in this order.
• If the pulse is felt in the rear brake lever be-
fore it is felt in the front brake lever, check
that the brake hoses and brake pipes are
connected correctly to the hydraulic unit
assembly.
• If the pulse is hardly felt in either the front
brake lever or rear brake lever, check that
the brake hoses and brake pipes are con-
nected correctly to the hydraulic unit as-
sembly.
12.Push the OFF/LOCK switch.
13.Remove the YDT from the YDT coupler, and
then install the protective cap.
14.Push the ON/start switch.
15.Set the engine stop switch to “ ”.
