4-77
HANDLEBAR

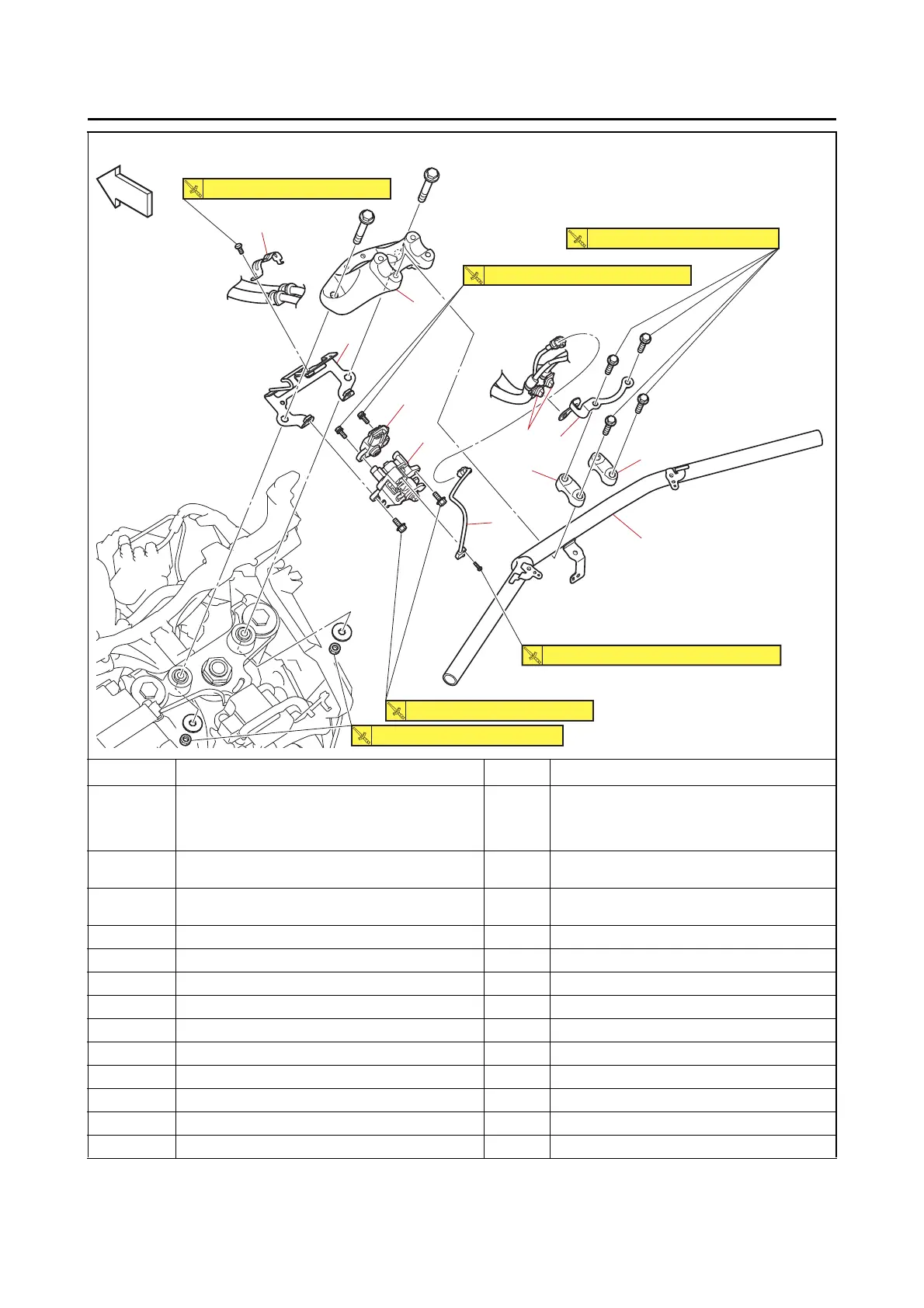

Removing the handlebar
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Rear
side cowling assembly/Side cover/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Handlebar cover/Brake master cylinder/Handle-
bar switch
Refer to “HANDLEBAR” on page 4-74.
1 Clamp 2
2 Bracket 1
3 Upper handlebar holder 2
4 Handlebar 1
5 Lower handlebar holder 1
6 Brake hose holder 1
7 Brake hose bracket 1
8 Throttle cable pulley 1
9 Grip cancel switch 1
10 Accelerator position sensor 1
FWDFWD
1
2
3
3
4
5
6
7
8
9
10
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
0.28 N・m (0.028 kgf・m, 0.207 lb・ft)
34 N・m (3.4 kgf・m, 25 lb・ft)
