5-13
CAMSHAFTS

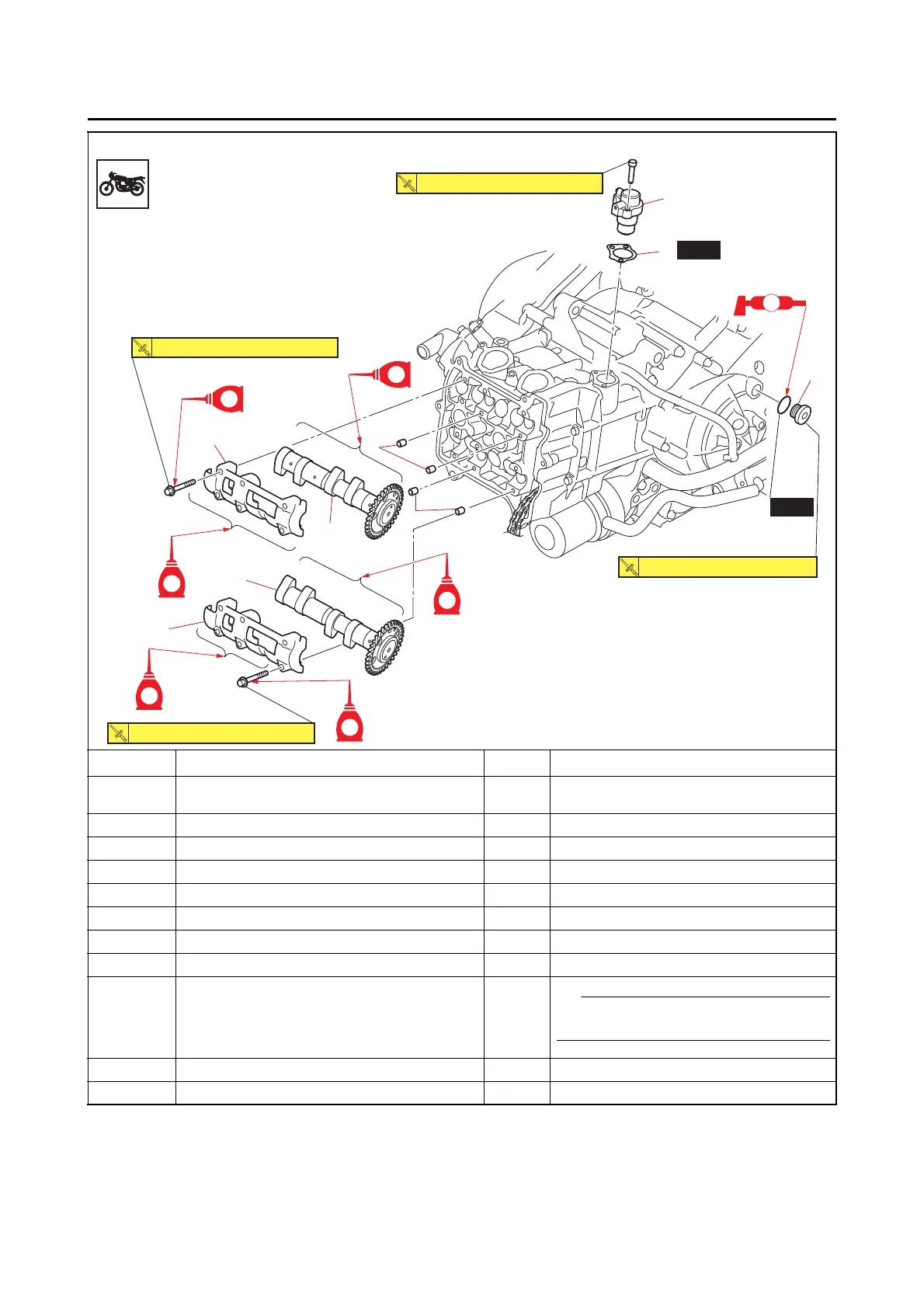

Removing the camshafts
Order Job/Parts to remove Q’ty Remarks
Crankshaft end access cover
Refer to “V-BELT AUTOMATIC TRANSMIS-
SION” on page 5-39.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Cylinder head cover Refer to “CAMSHAFTS” on page 5-12.
1 Timing mark accessing plug 1
2 Timing chain tensioner 1
3 Timing chain tensioner gasket 1
4 Intake camshaft cap 1
5 Exhaust camshaft cap 1
6 Dowel pin 4
During removal, the dowel pins may still be
connected to the camshaft caps.
7 Intake camshaft 1
8 Exhaust camshaft 1
New
New
2
(2)
1
3
6
4
6
7
(6)
(6)
8
5
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
8 N·m (0.8 kgf·m, 5.9 lb·ft)
LS
E
M
M
E
M
M
To Next Page
