Ferrule-Type Wire Terminals

Yaskawa recommends using CRIMPFOX ZA-3, a crimping tool manufactured by PHOENIX CONTACT, to prepare wire

ends with insulated sleeves before connecting to the drive. See Table 3.8 for dimensions.

8 mm

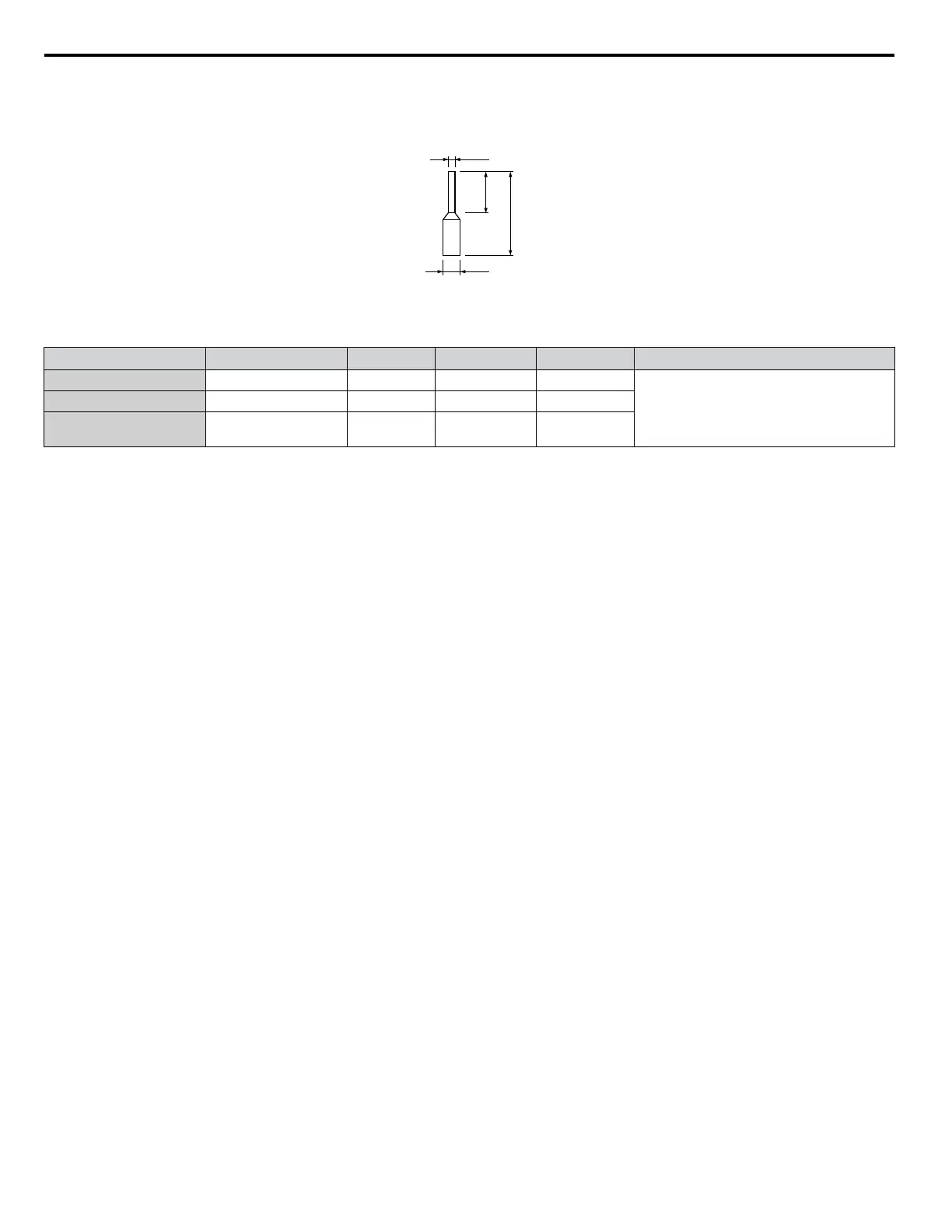

Figure 3.16 Ferrule Dimensions

Table 3.8 Ferrule Terminal Types and Sizes

Size mm

(AWG)

Type L (mm) d1 (mm) d2 (mm) Manufacturer

0.25 (24) AI 0.25-8YE 12.5 0.8 1.8

PHOENIX CONTACT

0.34 (22) AI 0.34-8TQ 10.5 0.8 1.8

0.5 (20)

AI 0.5-8WH or

AI 0.5-8OG

14 1.1 2.5

3.9 Control Circuit Wiring

YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
