7.17 Display of SERVOPACK and Servomotor ID (Fn01E)
7-27
7
Utility Functions (Fn)

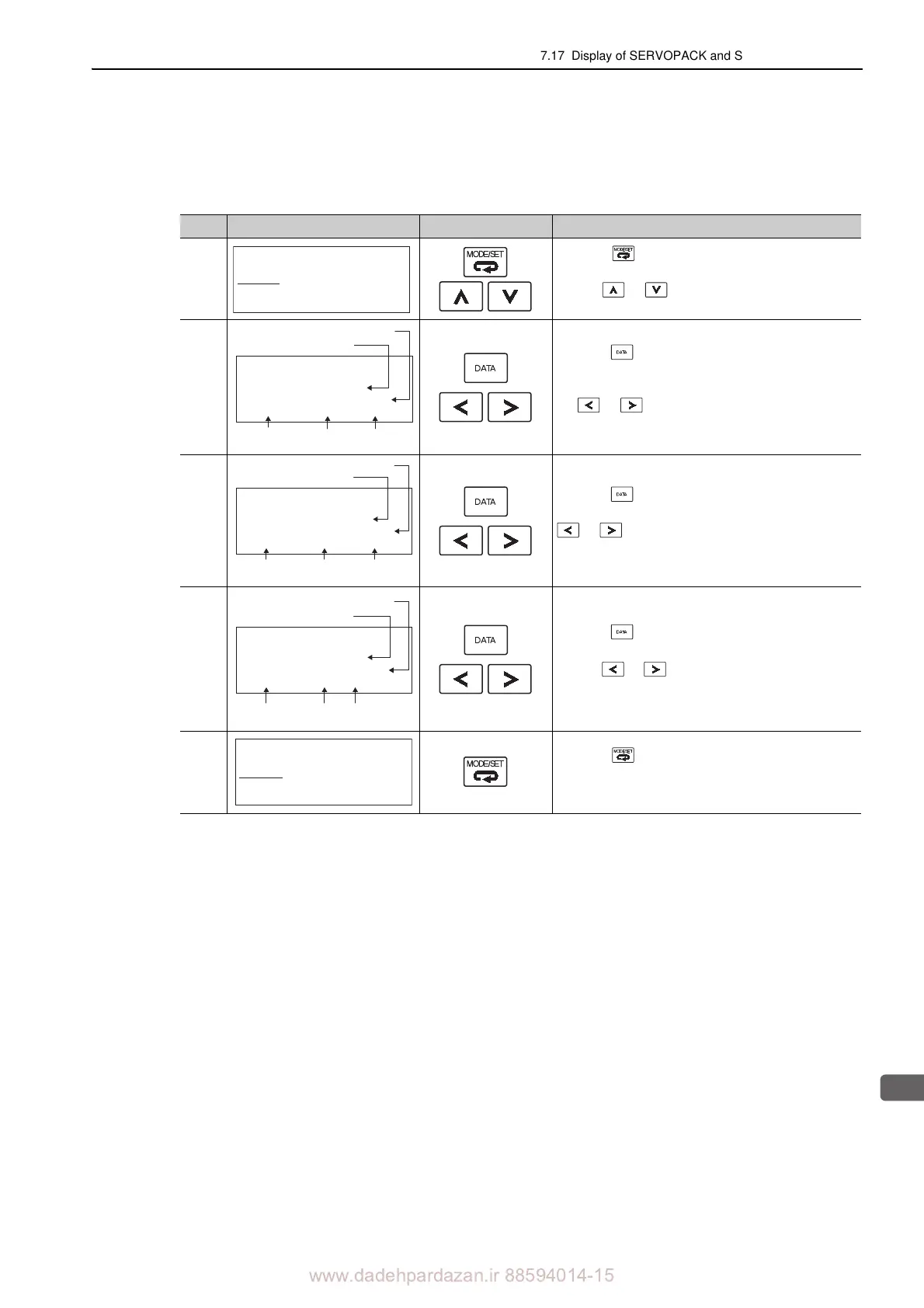

(2) Operating Procedure
Use the following procedure.
Step Display after Operation Keys Operation
1
Press the Key to view the main menu for the
utility function.
Use the or Key to move through the list and
select Fn01E.
2
Press the Key.
The display changes to the Fn01E execution display.
The SERVOPACK ID information
is displayed. Use
the or Key to scroll left and right and to
view other information.
3
Press the Key.
The servomotor ID information is displayed. Use the
or Key to scroll left and right and to view
other information.
4
Press the Key.
The linear scale ID information is displayed.
Use the or Key to scroll left and right and to
view other information.
5
Press the Key.
The display returns to the main menu of the utility
fun
ction.
RUN − FUNCTION−
Fn01B:Viblvl Init
Fn01E:SvMotOp ID
Fn020:S− Orig Set
Fn030:Soft Reset
Linear
BB − SvMotOp ID−
Driver
SGDV− R70A05A
D00241234590001
07. 04 200V, 50W
Serial number
Manufacturing
date
SERVOPACK model
Motor input
voltage
Motor
capacity
47
BB − SvMotOp ID−
Motor
SGLGW− 30A050C
D00245789090001
07. 04 200V, 40W
Serial number
Manufacturing
date
Servomotor model
Motor input
voltage
Motor
capacity
Linear
BB ޓ − SvMotOp ID−
Encoder
JZDP− D003− 000
000000− 000− 00000
07. 04 8bit− INC
Serial number
Manufacturing
date
Linear scale model
Encoder
resolution
Encoder
type
Linear
RUN − FUNCTION−
Fn0 1B: Viblvl Init
Fn01E:SvMotOp ID
Fn020:S− Orig Set
Fn030:Soft Reset
Lin-
ear
