YASKAWA V1000 Series Installation & Start-Up Manual

4.2 Using the Digital LED Operator
106 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure 4. 1

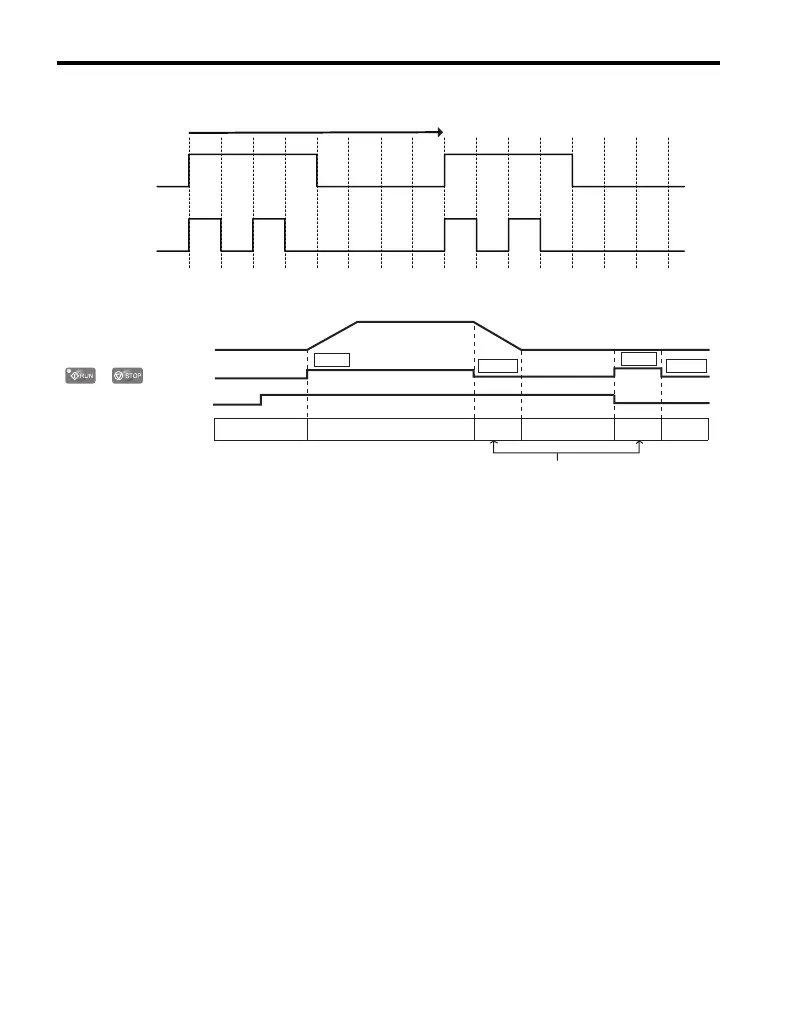

Figure 4.1 RUN LED Status and Meaning
Figure 4. 2
Figure 4.2 RUN LED and Drive Operation
Note: A RUN light flashing in short intervals can have one of the following meanings:
1. One of the digital input terminals is set to “Drive Enable”
(H1- = “6A”), and that input is open (i.e., shut off).
2. The run command must be provided from an external source. As a default, the
drive does not issue a run command when the power is switched on (b1-17 = “0”)
quick
flashin
g
flashing
ON ON
ON
ON ON
ON
1 s
drive output frequency
during stop
frequency setting
OFF
/
ON
Flashing
OFFON
RUN LED
STOP STOP
RUN
0 Hz
6 Hz
RUN

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
