7.2 Peripheral Devices
Peripheral Devices &
Options
7
7.2 Peripheral Devices
The following table of peripheral devices lists the names of the various devices/
options available for Yaskawa drives. Contact Yaskawa or your Yaskawa agent to
order these peripheral devices.
• Peripheral Device Selection: Refer to Yaskawa catalog for EMC filter selection
and part numbers.
• Peripheral Device Installation: Refer to option manual for option installation
instructions.

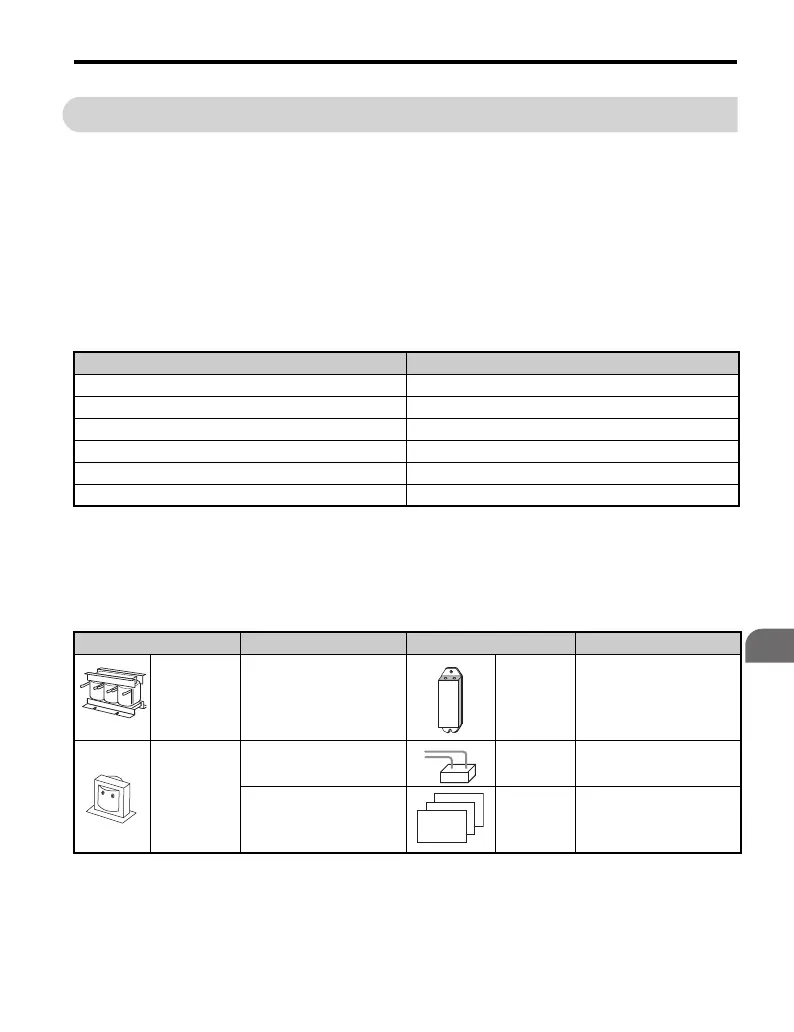

Table 7.1 Available Peripheral Devices
The following table lists some of the available peripheral devices found in
Table 7. 2 along with a picture of the device to help identify and describe situations
that may require each device.
Table 7.2 Specific Peripheral Devices and Purposes
Name
Surge Protector DIN Rail Attachments
DC Reactor NEMA Type 1 Kit
AC Reactor DriveWizard
Single-Phase 200 V Reactor Connection Cable for Engineering Tools
Braking Resistor DriveWorksEZ
Heatsink External Mounting Attachment (Side-by-Side)
Device Purpose Device Purpose
AC
Reactor
Protects the drive when the
power supply is too large.
Required for power
supplies greater than
600 kVA.
Braking
resistor
For uses requiring dynamic
braking.
DC
Reactor
Harmonic suppression.
Surge
protector
Suppresses surge voltage.
Improves the power factor
of the power supply.
Software
Engineering
Tools
Software for selecting drive
capacity, customizing and
programming the drive.
DriveSelect
DriveWizard
DriveWorksEZ
