5.9 Using Fault Trace Monitors
246 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
◆ Fault Trace
The following example illustrates how to view drive data after the drive detects an
overcurrent fault:

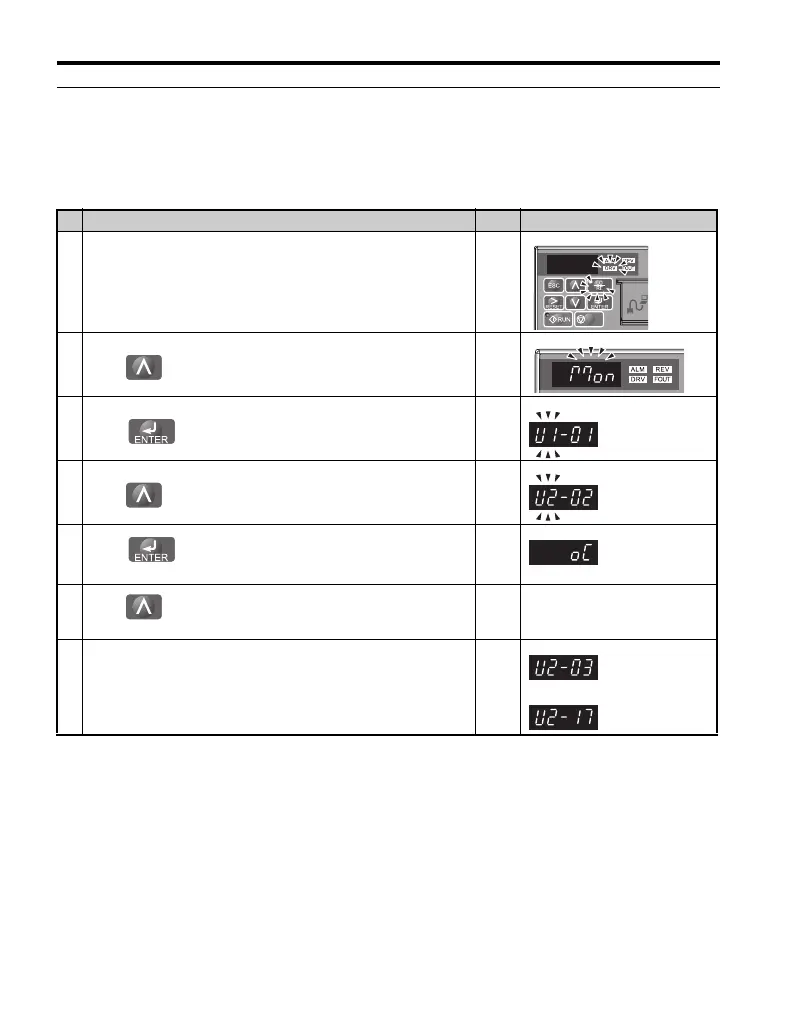

Step Display/Result
1. Turn on the drive input power. The first screen displays. ⇒
2.
Press until the monitor screen is displayed.
⇒
3.
Press to display the parameter setting screen.
⇒
4.
Press until U2-02 (Fault History) is displayed.
⇒
5.
Press to view the fault that has just occurred. In this
example, the fault is overcurrent.
⇒
6.
Press to view information about the drive status when the
fault occurred.
7.
Monitor parameters U2-03 through U2-17 are helpful in determining
what caused the fault.
⇒
STOP
〜

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
