3.5 Protective Covers
3.5 Protective Covers
Follow the procedure below to remove the protective covers before wiring the drive
and to reattach the covers after wiring is complete.
◆ Open-Chassis Type
■ Removing the Protective Covers
1. Loosen the screw that locks the front cover in place to remove the front
cover.

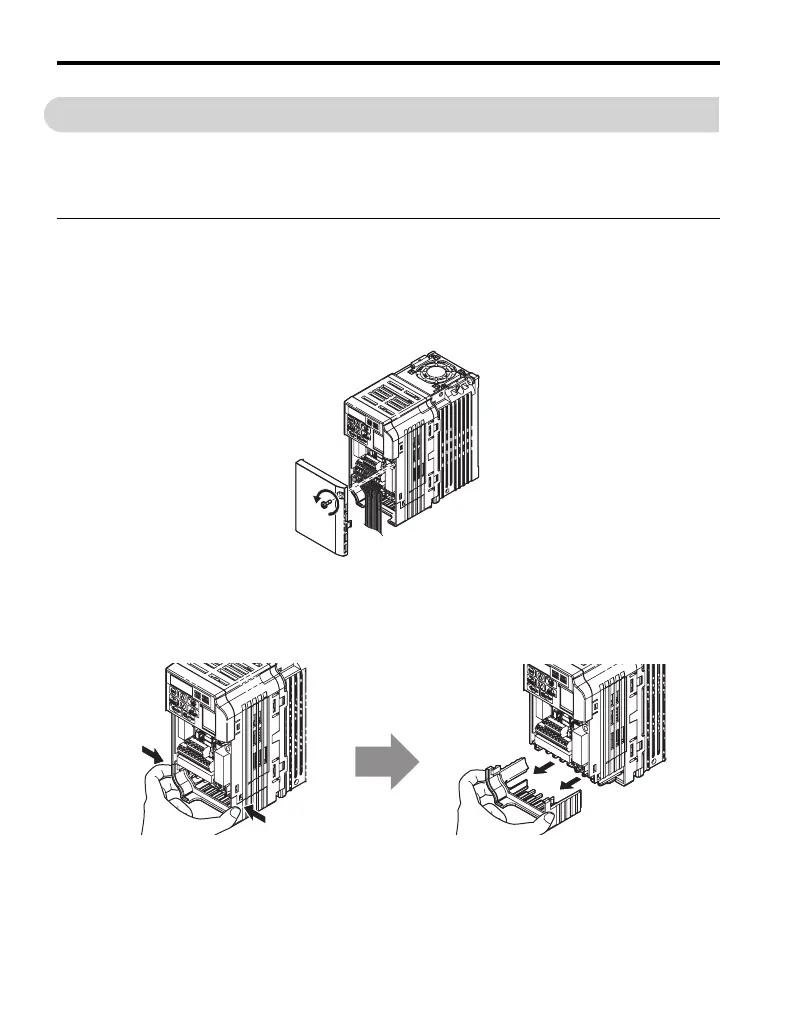

Figure 3. 8
Figure 3.8 Remove the Front Cover on an Open-Chassis Drive
2. Apply pressure to the tabs on each side of the terminal cover. Pull the
terminal cover away from the drive while pushing in on the tabs to pull the
cover free.
Figure 3. 9
Figure 3.9 Remove the Terminal Cover on an Open-Chassis Drive

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
