YASKAWA V1000 Series Installation & Start-Up Manual

4.2 Using the Digital LED Operator
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 107
Start-Up Programming & Operation
4
◆ Menu Structure for Digital LED Operator
Figure 4.3

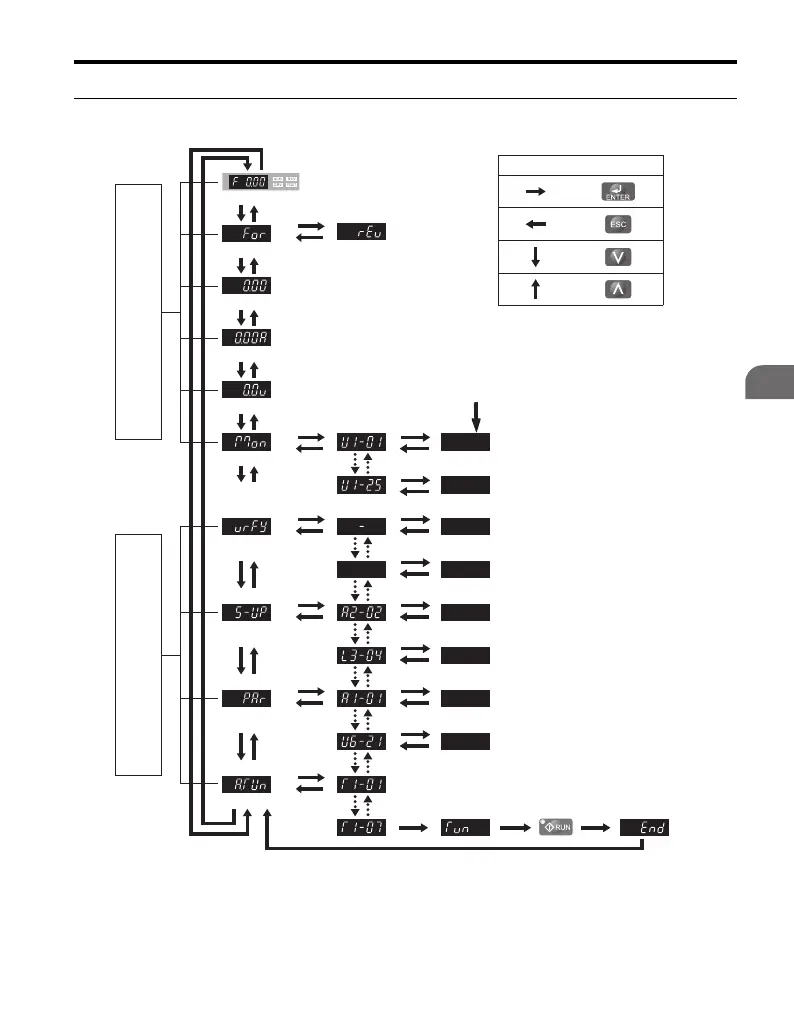

Figure 4.3 Digital LED Operator Screen Structure
XX XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
Turn the power on
Forward Selection
Reverse Selection
Output Frequency
Output Current
Output Voltage
Monitor Display
Verify Menu
Set Up Mode
Parameter Setting Mode
Auto-Tuning
DRV light is on.
*Pressing RUN will start the motor.
DRV light is off.
*Drive cannot operate the motor.
Description of Key Operations

:
:
:
:
Note: “XX” characters are shown in this manual.
The drive will display the actual setting values.

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
