2.2 Mechanical Installation
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 39
Mechanical Installation
2
◆ Installation Orientation and Spacing
Install the drive upright as illustrated in Figure 2.1 to maintain proper cooling.

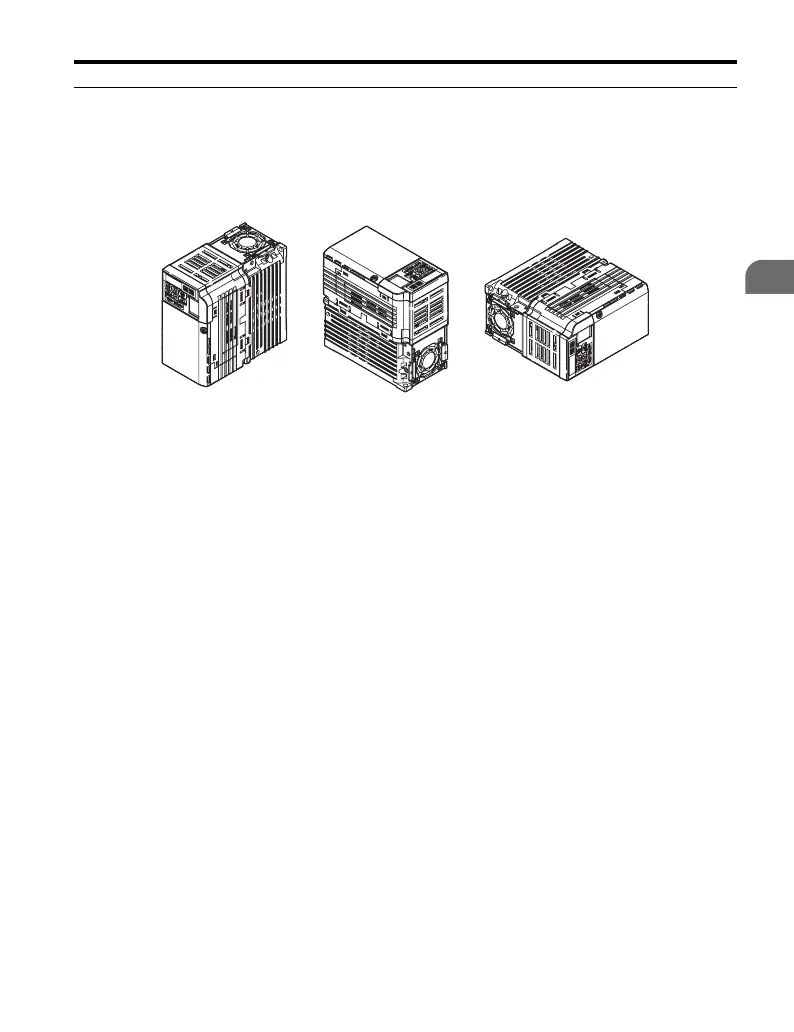

Figure 2.1
Figure 2.1 Correct Installation Orientation
A – Correct
B–Incorrect
C–Incorrect
ACB
