2.2 Mechanical Installation
40 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

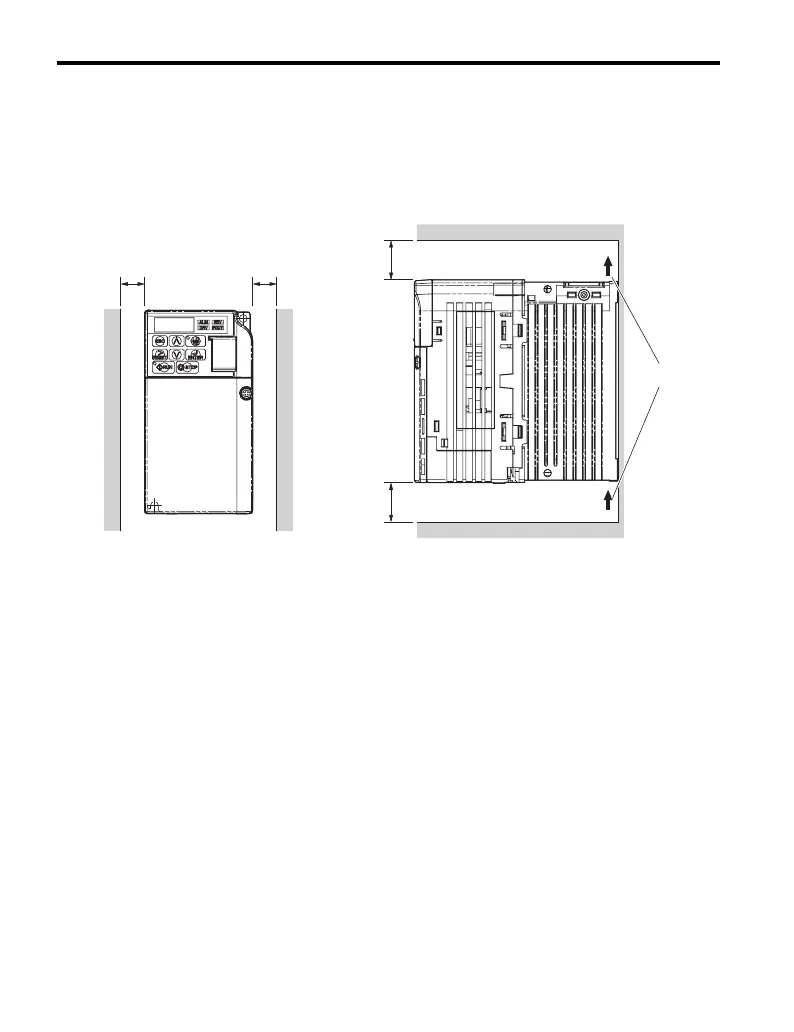

To maintain sufficient space for airflow and wiring, follow the instructions in
Figure 2.2. Install the heatsink against a closed surface to avoid diverting cooling
air around the heatsink.
Figure 2. 2
Figure 2.2 Correct Installation Spacing
Note: NEMA Type 1 and Open-Chassis models require the same amount of space above
and below the drive for installation.
A – Space to the left and right of
the unit
C – Space above and below the
unit
B – 30 mm minimum D – Airflow direction
E – 100 mm minimum
A
BB
C
D
E
E

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
