YASKAWA V1000 Series Installation & Start-Up Manual

4.4 Basic Parameter Adjustments
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 143
Start-Up Programming & Operation
4
■ Using S-Curve Characteristics during Acceleration/Deceleration
Using S-curve characteristics to smooth acceleration and deceleration minimizes
abrupt shock to the load.
Note: 1. Setting S-curve characteristics will lengthen accel/decel times as follows:
Accel Time = Selected Accel Time + (C2-01 + C2-02)/2
Decel Time = Selected Decel Time + (C2-03 + C2-04)/2
2. Set longer S-curve times using PM Open Loop Vector Control.
Setting Example

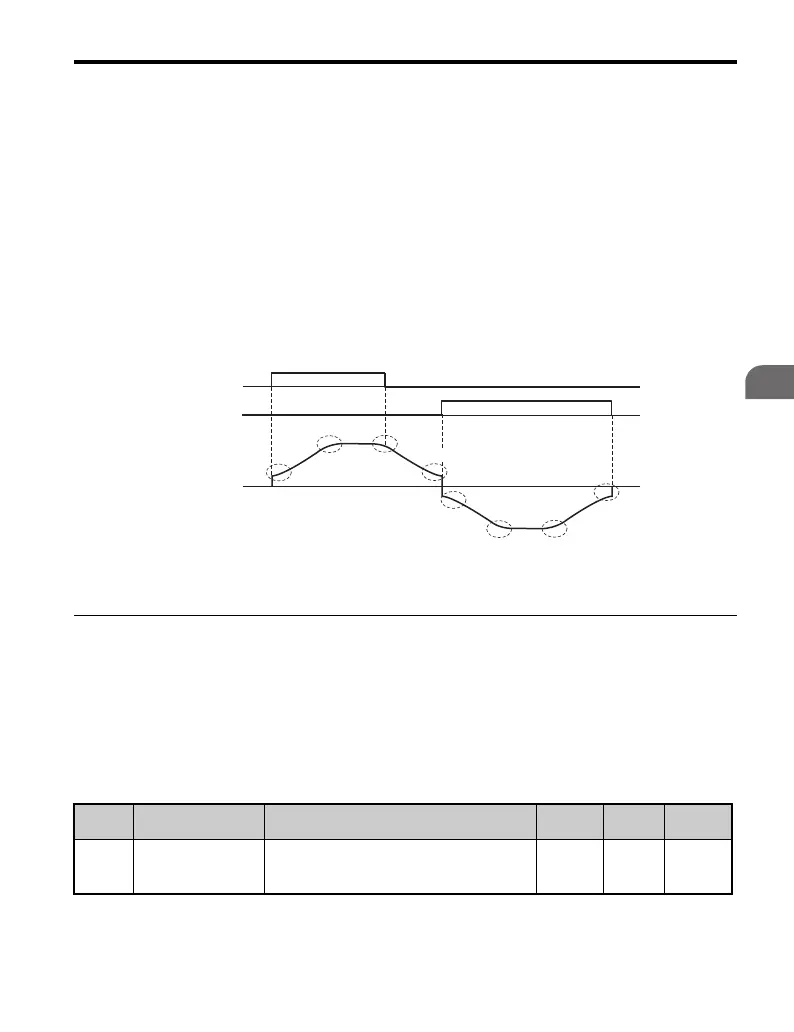

S-curve characteristics when switching between forward and reverse are illustrated
in Figure 4.22.
Figure 4.22
Figure 4.22 S-Curve Characteristics
◆ V/f Pattern Selection: E1-03
This parameter is only available when using V/f Control. It allows the user to set
the V/f pattern and drive output voltage as required. When running a high-speed or
other type of special-purpose motor, use this function to fine tune the amount of
torque required for the load. The V/f pattern can be selected between 15 fixed V/f
patterns or 1 user programmable V/f pattern.
No. Parameter Name Description
Setting
Range
Default Page
E1-03 V/f Pattern Selection
0 to E: Select from 15 preset V/f patterns.
F: Custom V/f pattern (allows use of E1-04
through E1-10).
0 to F F 356
C2-02
C2-01
C2-03
C2-04
C2-02
C2-01
C2-03
C2-04
Forward Run
Command
Reverse Run
Command
Output
Frequency

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
