YASKAWA V1000 Series Installation & Start-Up Manual

YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 309
7.6 Connecting an Option Card
Peripheral Devices & Options
7
7.6 Connecting an Option Card
The drive can communicate with other devices through a specially designed option
card. The following section describes how to install an option card.
• Refer to option card manual for detailed installation instructions.
Note: Refer to Available Option Cards on page 308 for a list of option cards for use with
this product.
◆ Verifying Option Card and Product Type

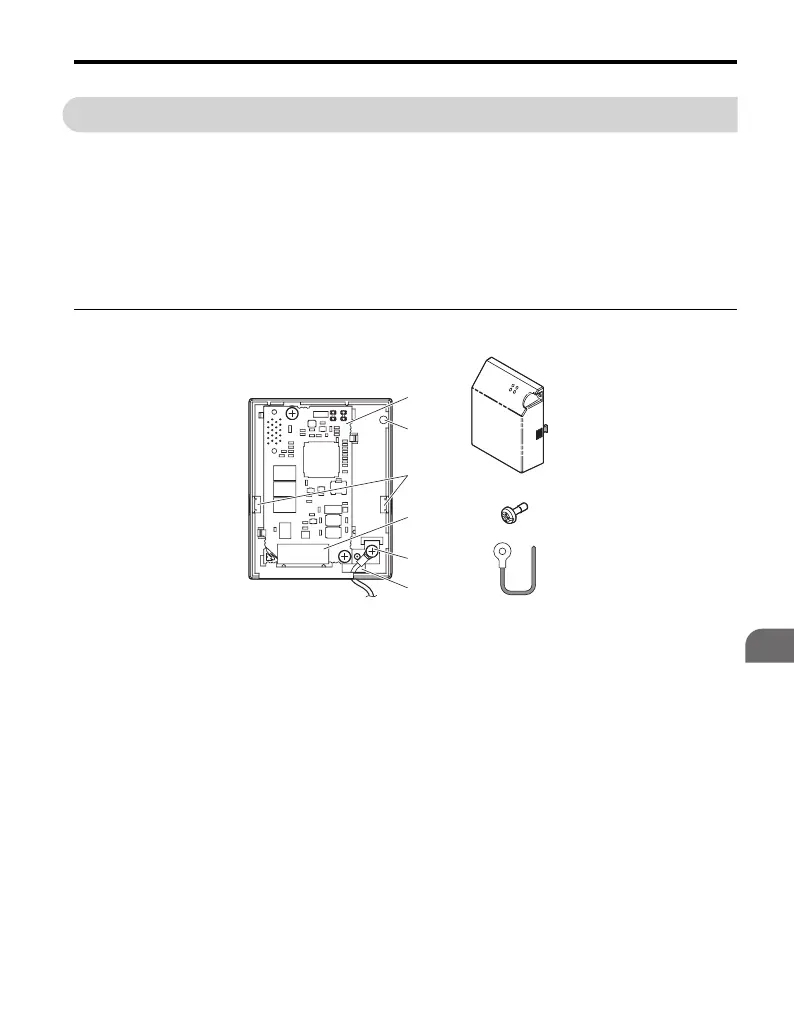

Figure 7.13
Figure 7.13 Option Card
A – Option card F – Wire through-hole
B – Option card cover installation
screw holes
G – Option card cover
C – Tabs for mounting front cover H – Cover screw
D – Comm. connector (CN1) I – Ground lead
E – Ground lead connection
C
E
F
D
A
B
G
H
I

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
