YASKAWA V1000 Series Installation & Start-Up Manual

7.4 Installing Peripheral Devices
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 301
Peripheral Devices & Options
7
Preventing Induced Noise
Use a noise filter on the output side or use shielded cables. Lay the cables at least
30 cm away from the signal line to prevent induced noise.

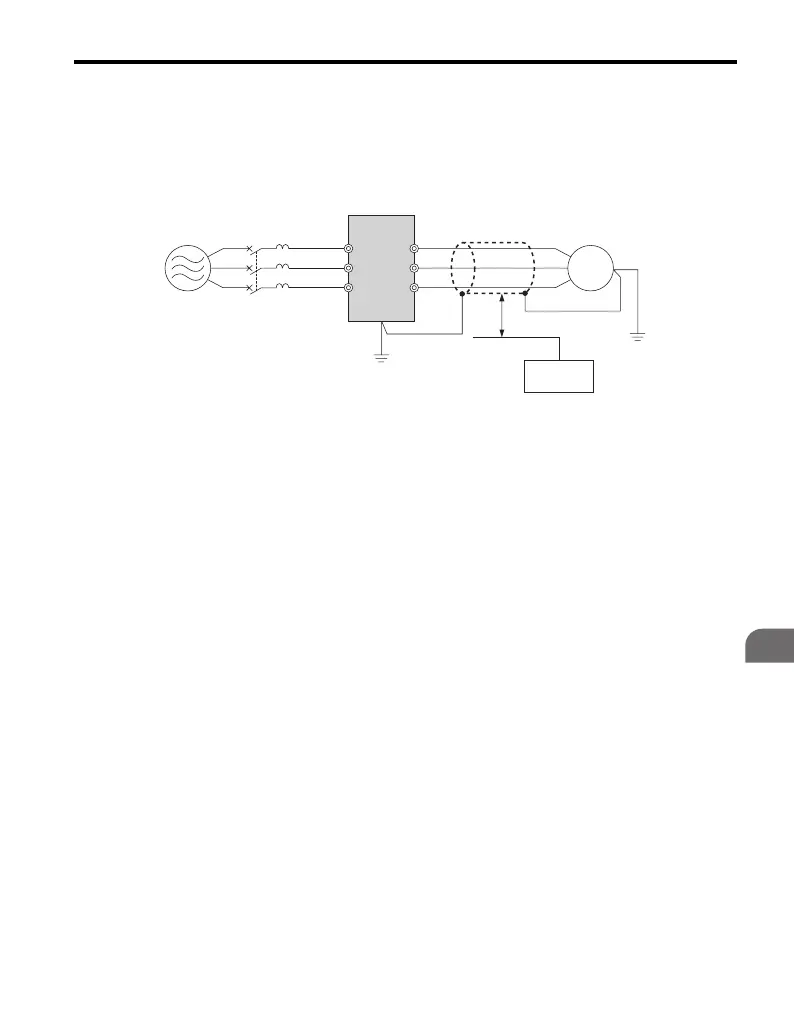

Figure 7.7
Figure 7.7 Preventing Induced Noise
Reducing Radiated/Radio Frequency Noise
The drive, input lines and output lines all generate radio frequency noise. Use noise
filters on both input and output sides and install the drive in a metal enclosure panel
to greatly reduce radio frequency noise.
Note: The cable running between the drive and motor should be as short as possible.
A – Power supply E – Separate at least 30 cm
B – Drive F – Controller
C – Shielded motor cable G – Signal line
D–Motor
B
A
C
F
G
D
E
R/L1
MCCB
S/L2
T/L3
U/T1
V/T2
W/T3

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
