4.3 Start-up Flowcharts
120 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
◆ Flowchart B: V/F Motor Control Set-Up
Figure 4.7 describes how to operate the application in V/f Control. V/f Motor
Control is suited for the most basic applications such as fans or pumps. This
procedure provides quick set-up using only the most basic parameters. V/f control
can be used where rotational auto-tuning cannot be performed.
Figure 4. 7

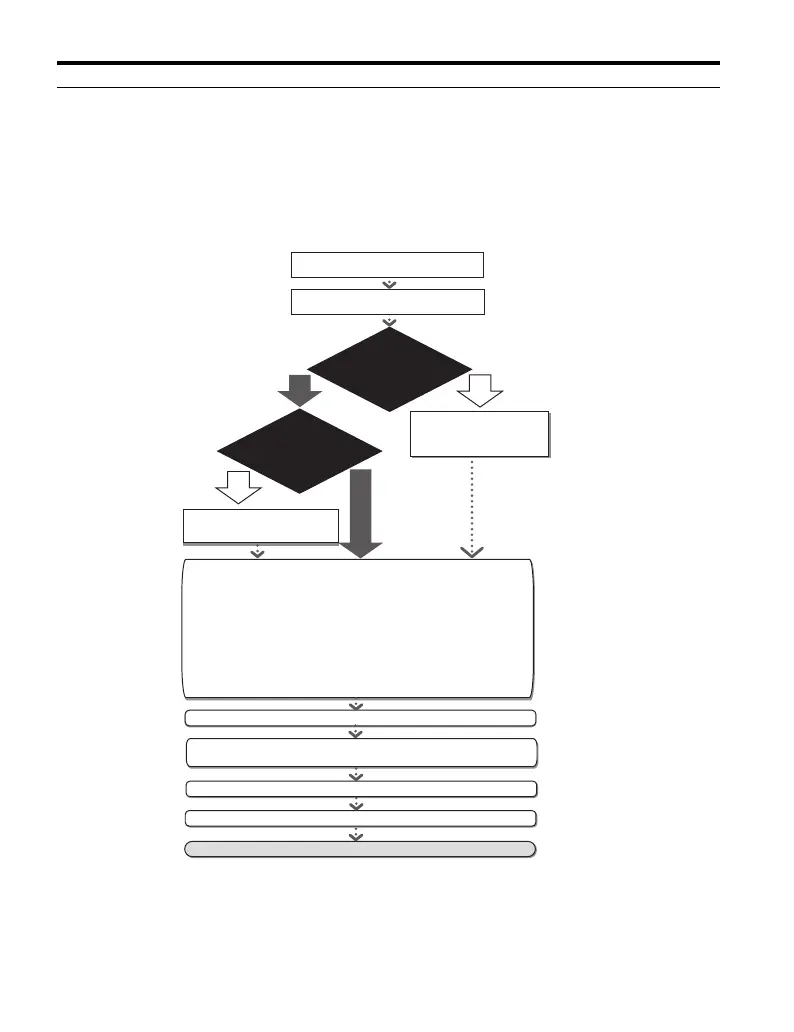

Figure 4.7 V/f Control
Use parameter A1-06 (application selection) for basic application
setup
OR
manually set/check the basic parameters:
* b1-01, b1-02 for frequency reference and run command source
* H1-xx, H2-xx, H3-xx, H4-xx, H6-xx to configure the analog/digital
I/O terminals.
* d1-xx speed reference values if necessary
* C1-xx, C2-xx for Acceleration/Deceleration times and S-curves
* C6-01 Duty Mode
Does the application
need Speed-Estimation
Type Speed Search?
(b3-24 = 1)
Is the cable
between the motor and
drive longer than 50 m?
NO
NO
YES
YES
Perform Auto-Tuning
for Energy Savings in V/f
(motor rotates).
Perform Stationary Auto-Tuning
for terminal resistance only.
Set or verify the V/f pattern E1-03.
NO
Run the motor without the load.
Set A1-02 for V/f Control A1-02=0.
Couple the load or machine to the motor. Run the drive and motor
and check direction and operation
Fine tune and set application parameters (e.g. PID,...) if necessary.
Check system operation and verify settings function as required.
Drive is ready to run the application
To Next Page
