4.2 Using the Digital LED Operator
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 115
Start-Up Programming & Operation
4
◆ Switching Between LOCAL and REMOTE
Entering the run command using the LED operator is referred to as LOCAL, while
entering the run command from an external device via the control circuit terminals
or network option card is referred to as Remote.
WARNING! Sudden Movement Hazard. The drive may start unexpectedly if the Run
command is already applied when switching from LOCAL mode to REMOTE mode when b1-
07 = 1, resulting in death or serious injury. Be sure all personnel are clear of rotating
machinery and electrical connections prior to switching between LOCAL mode and REMOTE
mode.
There are three separate ways to switch between LOCAL and REMOTE.
Note: 1. After selecting LOCAL, LO/RE will remain lit.
2. The drive will not allow the user to switch between LOCAL and REMOTE during run.
■
Using the LO/RE Key on the LED Operator
9.
Press to confirm the change.
⇒
10.
The display automatically returns to the initial screen shown in
Step 4.
⇒
11.
Press the key until the first screen is displayed.
⇒

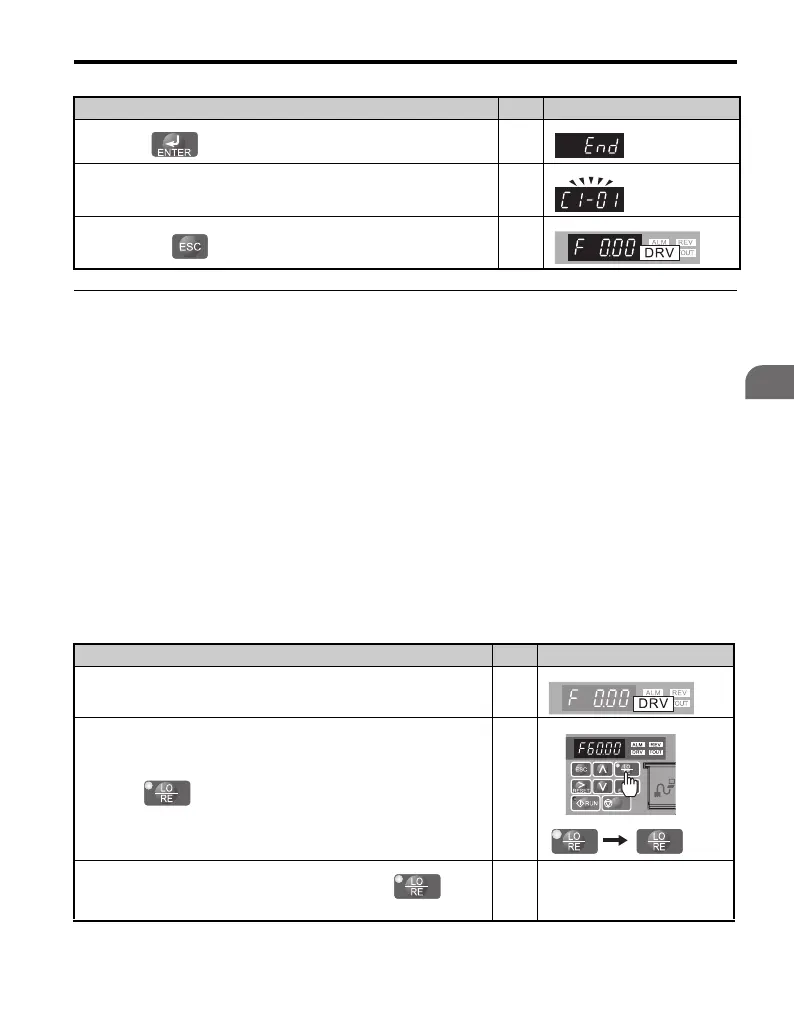

Step Display/Result
1. Turn on the power to the drive. The initial display appears. ⇒
2.
Press . LO/RE will light up. The drive is now in Local.
⇒
3.
To set the drive for REMOTE operation, press the key
again.
Step Display/Result
STOP
