4.2 Using the Digital LED Operator
116 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Using Input Terminals S1 through S7 to Switch between LO/RE
Switch between LOCAL and REMOTE using one of the digital input terminals S1
through S7 (set the corresponding parameter H1-01 through H1-07 to “1”).
Follow the example below to set the digital input terminals.
Note: 1. For a list of digital input selections, refer to Parameter List on page 331.
2. Setting a multi-function input terminal to a value of 1 disables the LO/RE key on the LED
operator.
Note: The drive uses parameters b1-01 and b1-02 to determine the source of the frequency
reference and run command in Remote. Set these parameters to “0” to cause the
drive to use the LED operator for the source. Set these parameters to “1” to cause the
drive to use the control terminals for the source.

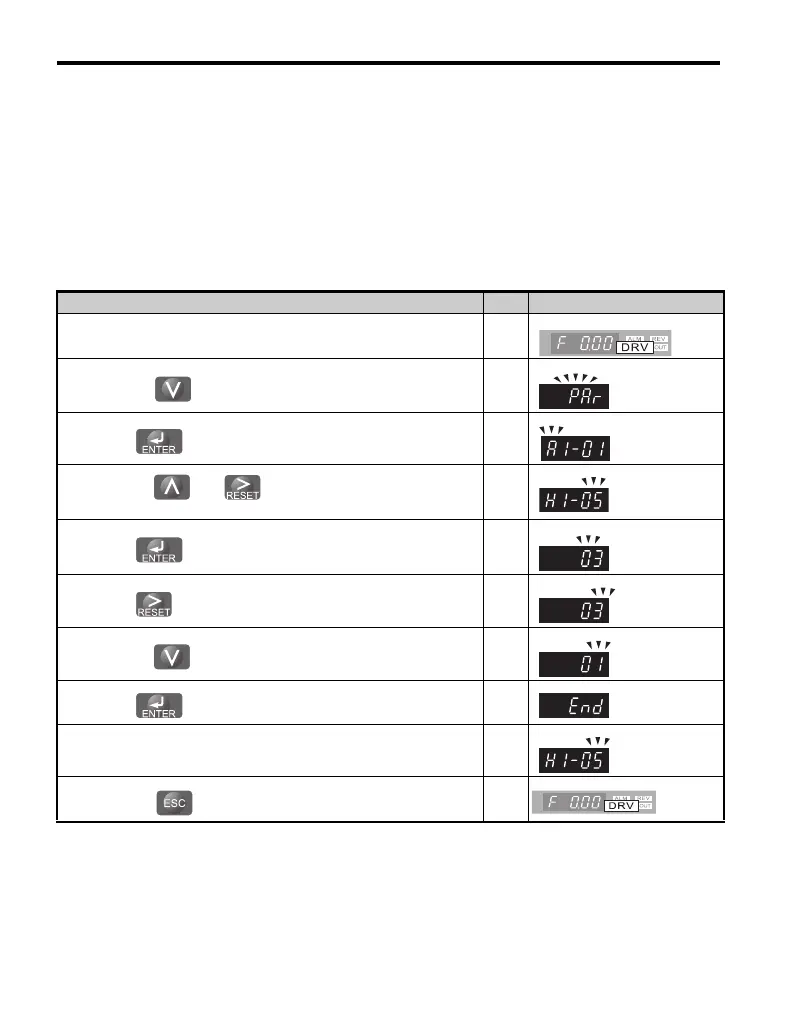

Step Display/Result
1. Turn on the power to the drive. The initial display appears. ⇒
2.
Press the key until the Parameter Setting menu appears.
⇒
3.
Press to enter into the Parameter Setting menu.
⇒
4.
Press the and keys to select H1-05.
Note: Select one of the digital inputs: H1-01 through H1-07
⇒
5.
Press to view the current setting value for H1-05.
⇒
6.
Press to select the desired digit.
⇒
7.
Press the key to select 1 (LOCAL/REMOTE Selection).
⇒
8.
Press and the drive will confirm the change.
⇒
9. The display automatically returns to the screen shown in Step 4. ⇒
10. Press the key until the display returns to the initial display. ⇒
