■ Reattaching the Protective Covers
Properly connect all wiring and route power wiring away from control signal
wiring. Reattach all protective covers when wiring is complete. Apply only a small
amount of pressure to lock the cover back into place.

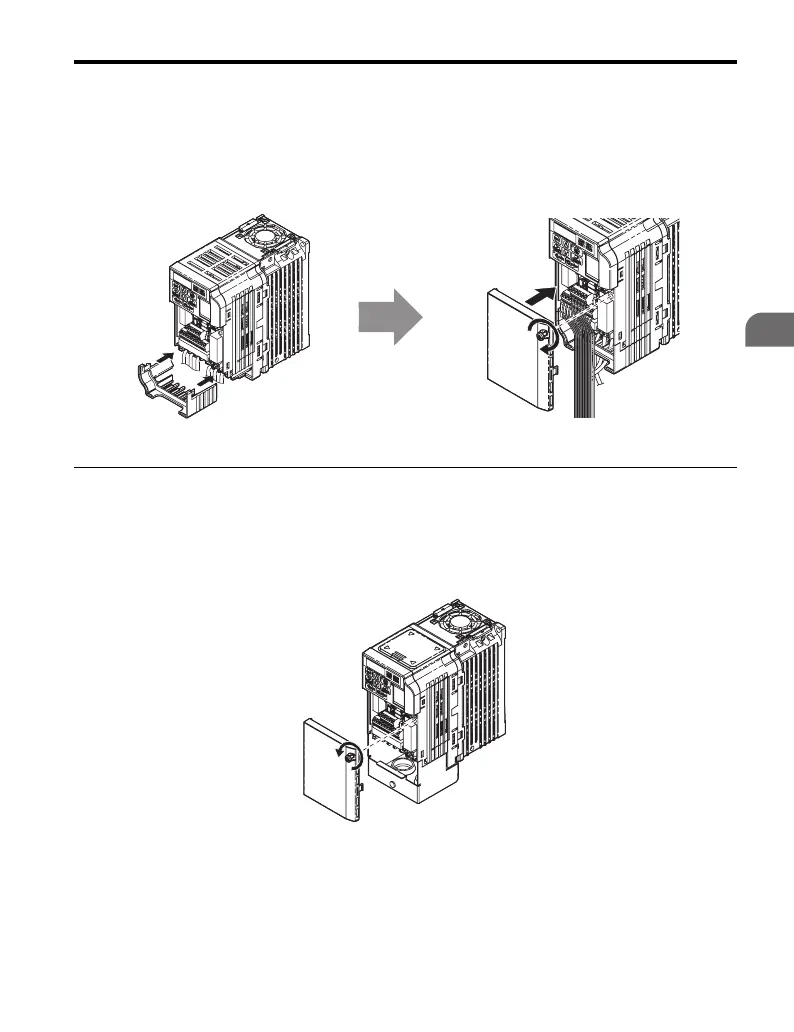

Figure 3.10
Figure 3.10 Reattach the Protective Covers on an Open-Chassis Drive
◆ NEMA Type 1
■ Removing the Protective Covers on an IP20/NEMA Type 1 design
1. Loosen the screw that locks the front cover in place to remove the front
cover.
Figure 3.11
Figure 3.11 Remove the Front Cover on an IP20/NEMA Type 1 Drive
