YASKAWA V1000 Series Installation & Start-Up Manual

1.4 Component Names
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 31
Receiving
1
◆ IP20/NEMA Type 1 Enclosure
■ Single-phase 200 Vac Models:
CIMR-VBA0001[B/F] to CIMR-VBA0003[B/F]
Three-phase 200 Vac Models:
CIMR-V2A0001[B/F] to CIMR-V2A0006[B/F]
Figure 1.6

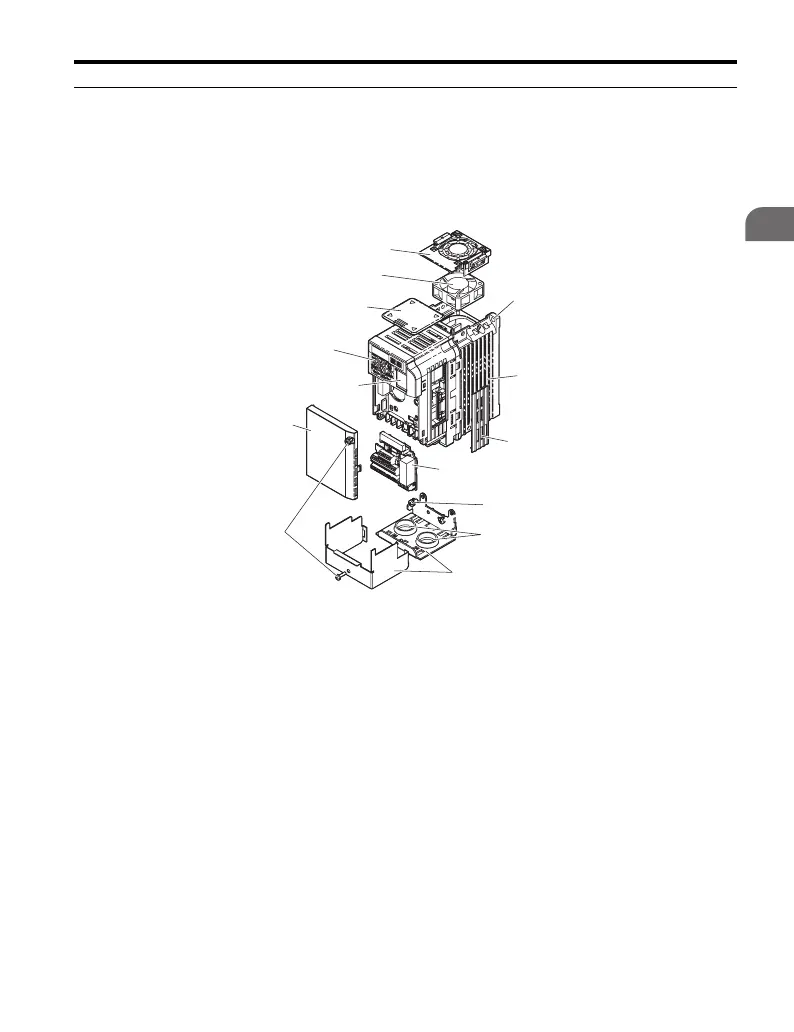

Figure 1.6 Exploded View of IP20/NEMA Type 1 Components
Three-phase 200 Vac Model CIMR-V2A0002[B/F]
A – Fan cover H – Bottom front cover
B – Mounting hole I – Front cover screws
C – Heatsink J – Front cover
D – Optional 24 V DC power
supply connector cover
K–Comm port
Refer to Network
Communications on page 427
E – Terminal board
Refer to Table 3.6 on page 77
L – LED operator
Refer to Using the Digital LED
Operator on page 102
F – Bottom cover screws M – Top cover
G – Rubber bushing N – Cooling fan
Refer to Drive Cooling Fans on
page 278
A
B
C
D
E
F
G
H
I
J
K
L
M
N

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
