4.4 Basic Parameter Adjustments
150 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
◆ Drive Status Monitors: U1-01 to U6-19
Parameter group U displays various data regarding the operating status of the drive.
The following example demonstrates how to view the output voltage reference
(U1-06).

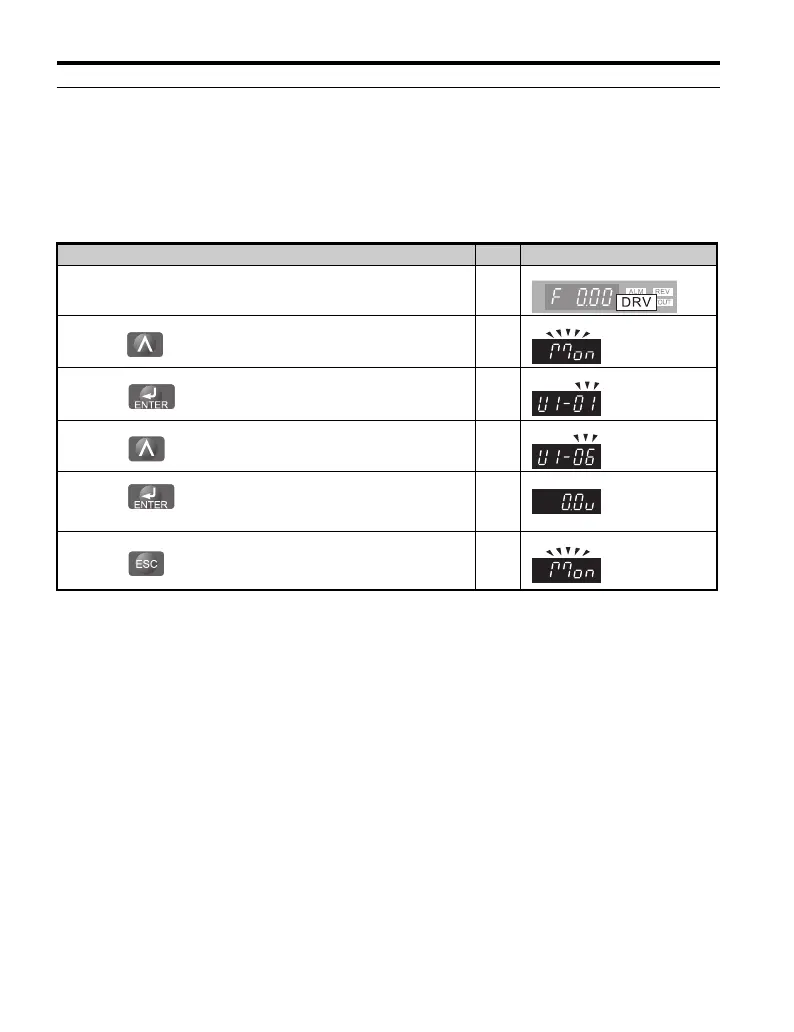

Step Display/Result
1. Turn on the power to the drive. The initial display appears. ⇒
2.
Press until “Monitor Display” appears.
⇒
3.
Press to enter the Parameter Setting Screen.
⇒
4.
Press until U1-06 appears.
⇒
5.
Press to display the voltage reference. The Output Voltage
Reference appears.
⇒
6.
Press until the “Frequency Reference” screen appears.
⇒

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
