6.5 Drive Replacement
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 283
Periodic Inspection & Maintenance
6
Figure 6.5

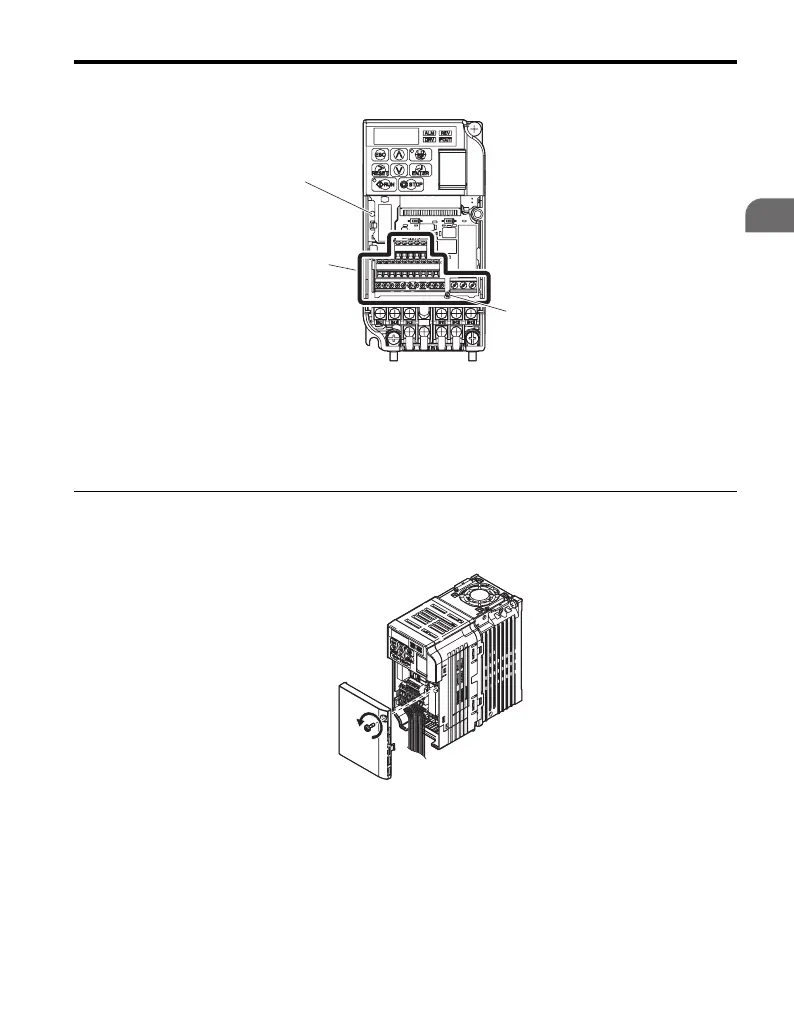

Figure 6.5 Terminal Board
◆ Replacing the drive
1. Loosen the screw on the front of the drive and remove the front cover.
Figure 6.6
Figure 6.6 Remove Front Cover
A–Charge LED
B – Terminal Board screw
C – Terminal Board
A
B
C
