6.5 Drive Replacement
284 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
2. Depress the plastic tab on the case near the bottom of the terminal board
and above the main circuit terminals to release the terminal board from the
case.

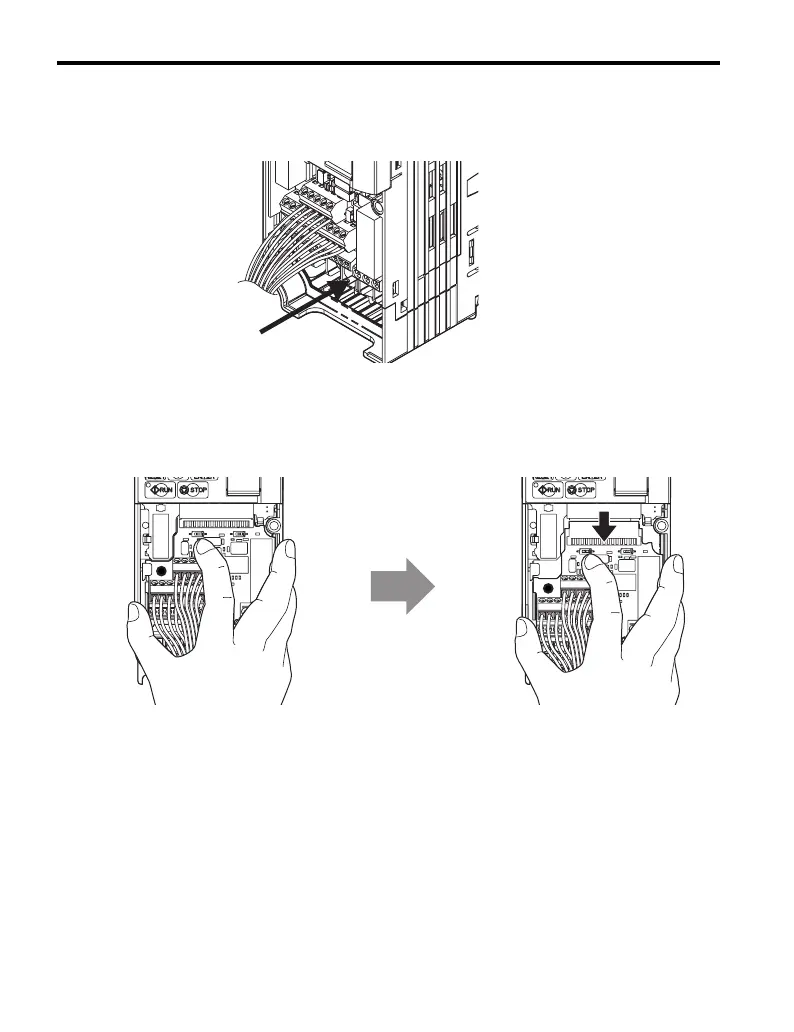

Figure 6. 7
Figure 6.7 Depress Plastic Tab
3. Slide the terminal board in the direction indicated by the arrows and
remove it from the drive.
Figure 6. 8
Figure 6.8 Remove Terminal Board
