YASKAWA V1000 Series Installation & Start-Up Manual

428 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
C.1 MEMOBUS/Modbus Basic Set-Up
C.1 MEMOBUS/Modbus Basic Set-Up
Serial communication can be performed with Program Logic Controllers (PLCs) or
similar master devices using the MEMOBUS/Modbus protocol.
◆ MEMOBUS/Modbus Communication Configuration
MEMOBUS/Modbus communication is configured using 1 master (PLC) and a
maximum of 31 slaves. Serial communication between master and slave is
normally initiated by the master and responded to by the slaves.
The master performs serial communication with one slave at a time. Consequently,
the slave address of each slave must be initially set, so that the master can perform
serial communication using that address. Slaves receiving commands from the
master perform the specified functions, and send a response back to the master.

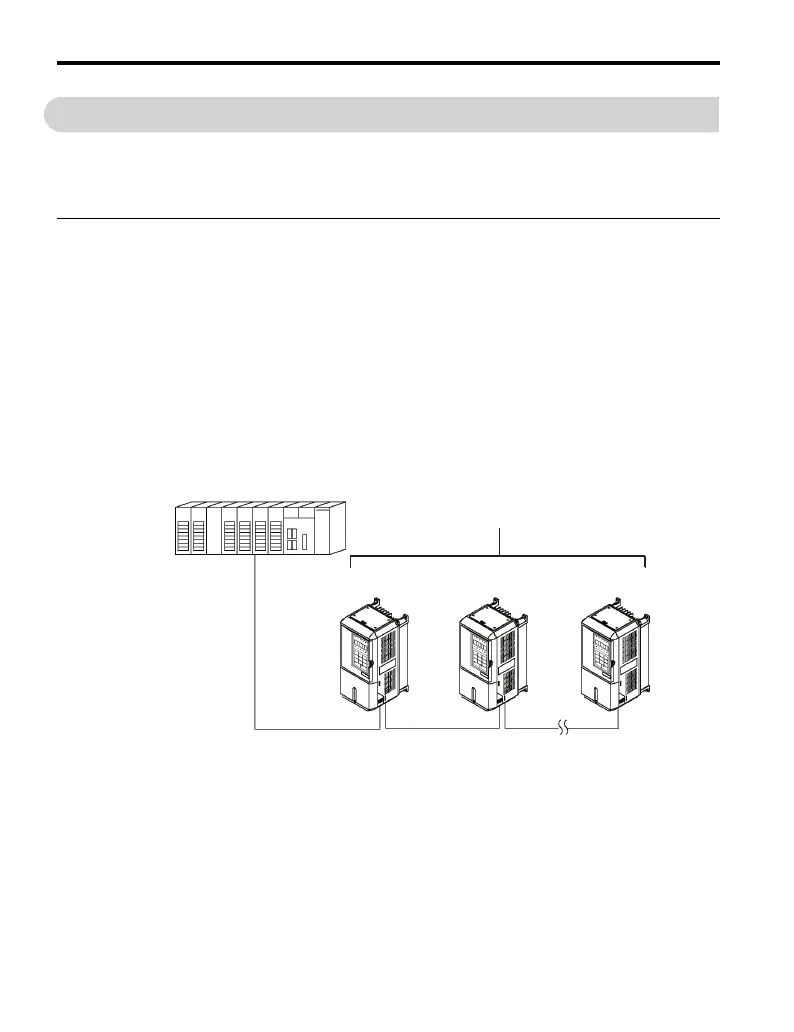

Figure C.1
Figure C.1 Example of Connections between Master and Drive
Master
AC Drive
Slaves
AC Drive AC Drive

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
