4.2 Using the Digital LED Operator
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 113
Start-Up Programming & Operation
4

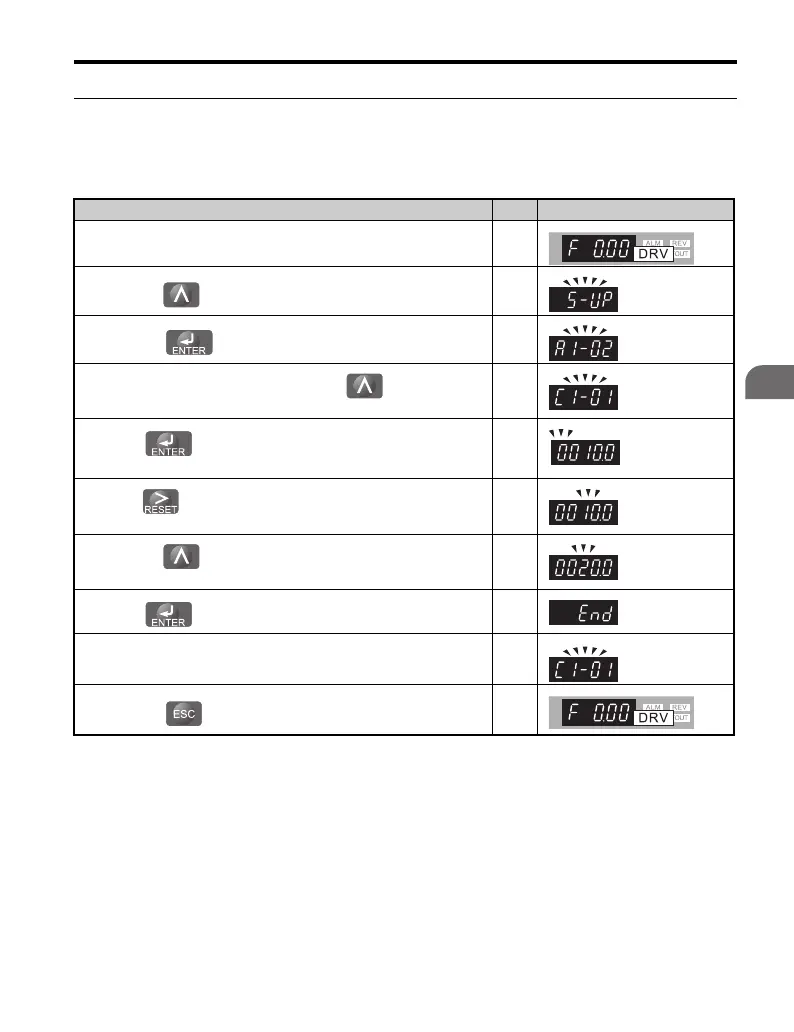

◆ Changing Parameter Settings or Values
This example explain how to set the acceleration time (C1-01).
Step Display/Result
1. Turn on the power to the drive. The initial display appears. ⇒
2.
Press the key until the Setup Mode Screen appears.
⇒
3.
Press the key.
⇒
4.
Scroll through parameters by pressing the key until C1-01
appears.
⇒
5.
Press to view the current setting value. (most significant
number flashes) 10.0 s
⇒
6.
Press until the desired number is selected.
(“1” flashes)
⇒
7.
Press the key and enter 0020.0.
(20.0 s)
⇒
8.
Press and the drive will confirm the change.
⇒
9. The display automatically returns to the screen shown in Step 4. ⇒
10. Press the key until back at the initial display. ⇒

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
