4.4 Basic Parameter Adjustments
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 155
Start-Up Programming & Operation
4
◆ Digital Outputs H2-01 to H2-03
Parameters H2-01, H2-02 and H2-03 assign functions to digital output terminals
MA, MB, MC, P1, and P2. Set these parameters as required by the application.
Default values are listed below.
Note: The setting range for H2-01 through H2-03 is 0 to 4D. Refer to Parameter List on
page 331 for more information.

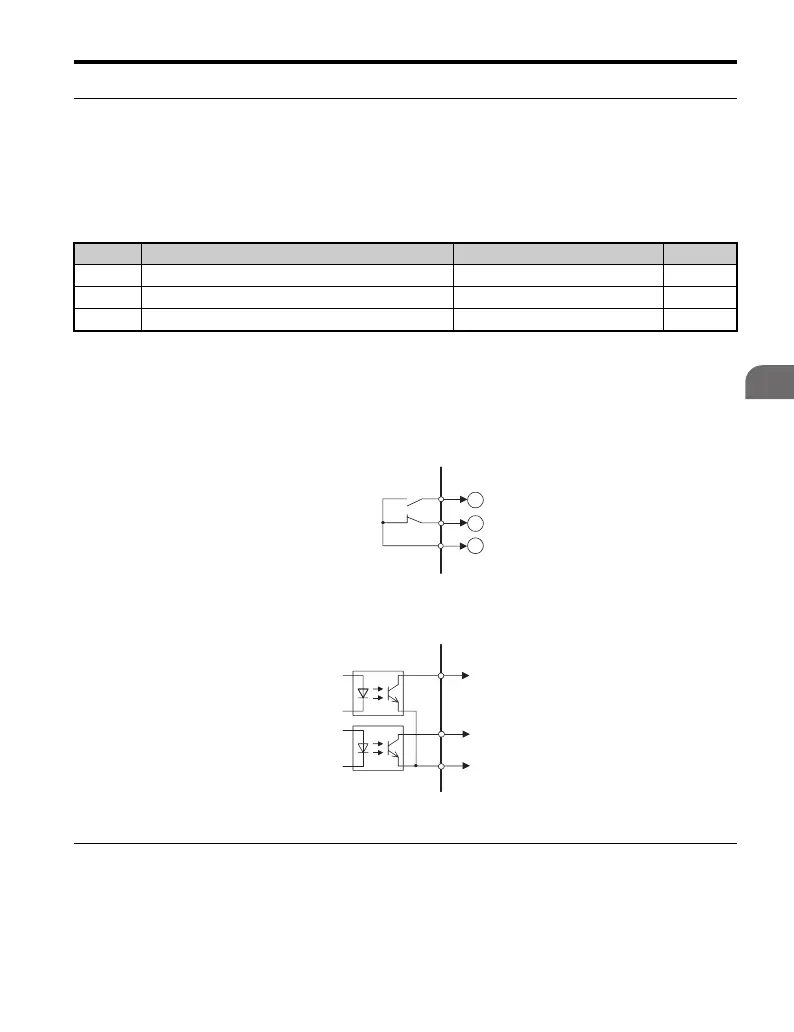

Figure 4.25
Figure 4.25 Digital Output Connection Diagram
◆ Motor Protection
This section explains how to set motor overload protection.
No. Parameter Name Default Page
H2-01 Terminal MA, MB and MC Function Selection (relay) E: Fault —
H2-02 Terminal P1 Function Selection (open-collector) 0: During Run —
H2-03 Terminal P2 Function Selection (open-collector) 2: Speed Agree 1 —
Multi-Function Contact Outputs
250 Vac, 10 mA - 1 A
30 Vdc, 10 mA - 1 A
(standard default setting)
Multi-Function Open-collector Outputs
48 Vdc, 50 mA or less
(standard default setting)
P1
P2
PC
During Run
Speed Agree
Open-collector Common
MA
MB
MC
MA
MC
Fault
MB

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
