7.4 Installing Peripheral Devices
302 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

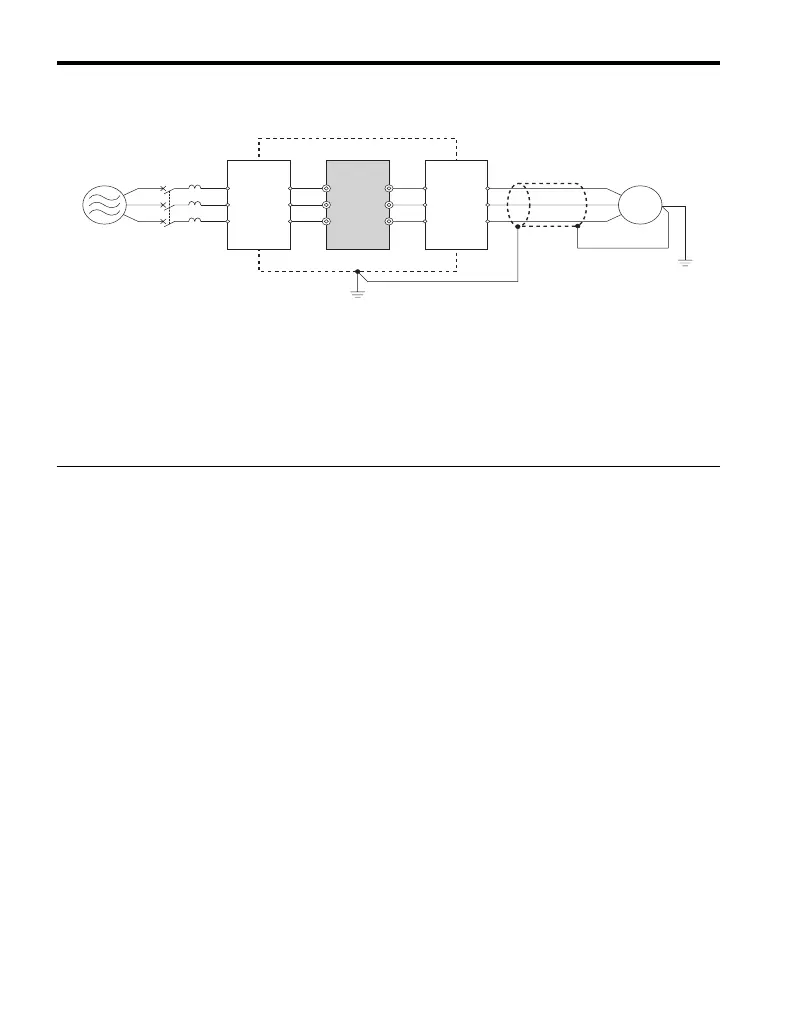

Figure 7. 8
Figure 7.8 Reducing Radio Frequency Noise
◆ EMC Filter Installation
This drive is tested according to European standards EN61800-3 and it complies
with the EMC guidelines. The following conditions must be met to ensure
continued compliance with guidelines.
• EMC Filter Selection: Refer to Yaskawa catalog for EMC filter selection and
part numbers.
• EMC Filter Installation: Refer to option manual for option installation
instructions.
■ Installation Method
Verify the following installation conditions to ensure that other devices and
machinery used in combination with this drive also comply with EMC guidelines.
1. Install an EMC noise filter to the input side specified by Yaskawa for
compliance with European standards.
2. Place the drive and EMC noise filter in the same enclosure.
3. Use braided shield cable for the drive and motor wiring or run the wiring
through a metal conduit.
A – Metal enclosure E – Noise filter
B – Power supply F – Shielded motor cable
C – Noise filter G – Motor
D–Drive
CEDBF
A
R/L1
MCCB
S/L2
T/L3
U/T1
V/T2
W/T3
G

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
