7.6 Connecting an Option Card
310 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
◆ Connecting the Option Card
1. Loosen the screw on the front cover of the drive to remove the cover.

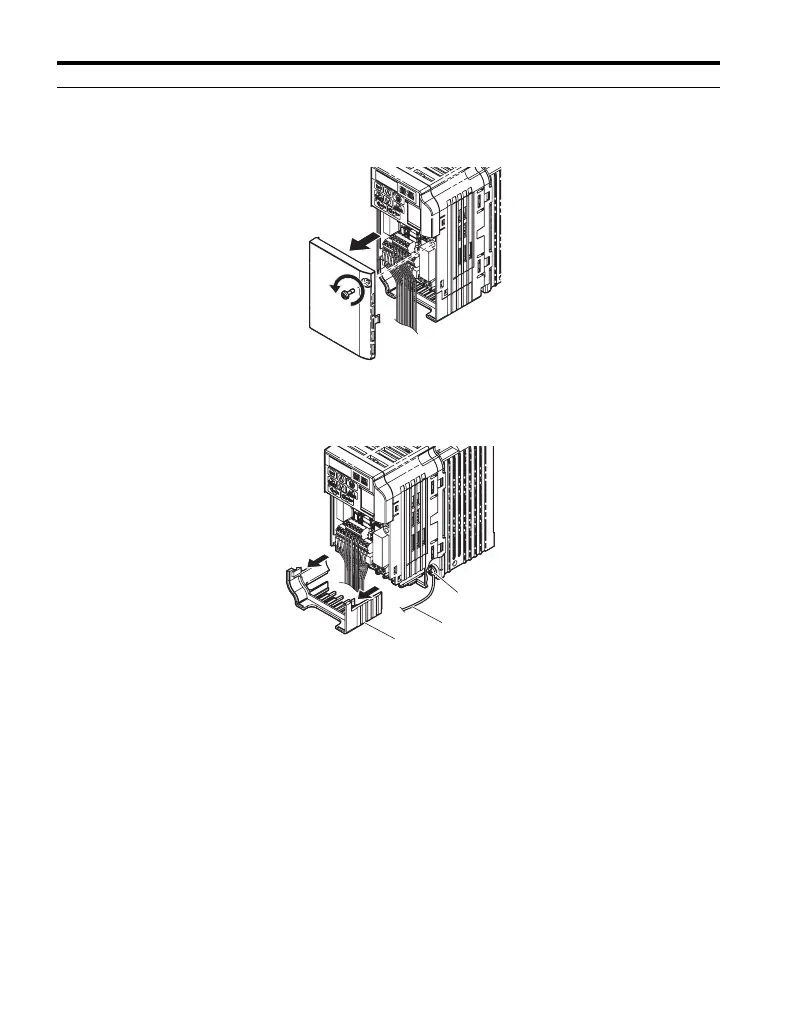

Figure 7. 14
Figure 7.14 Remove Cover
2. Remove the terminal cover. Connect the lead from the option card to the
drive ground terminal.
Figure 7. 15
Figure 7.15 Connect Lead
3. Reattach the terminal cover.
4. Attach the option card to the drive.
A – Ground terminal C – Terminal cover
B – Ground lead
C
A
B
To Next Page
